Replacement Parts for the
Luma 5 Freestyle
Carbon Fibre
| Part |
Thickness |

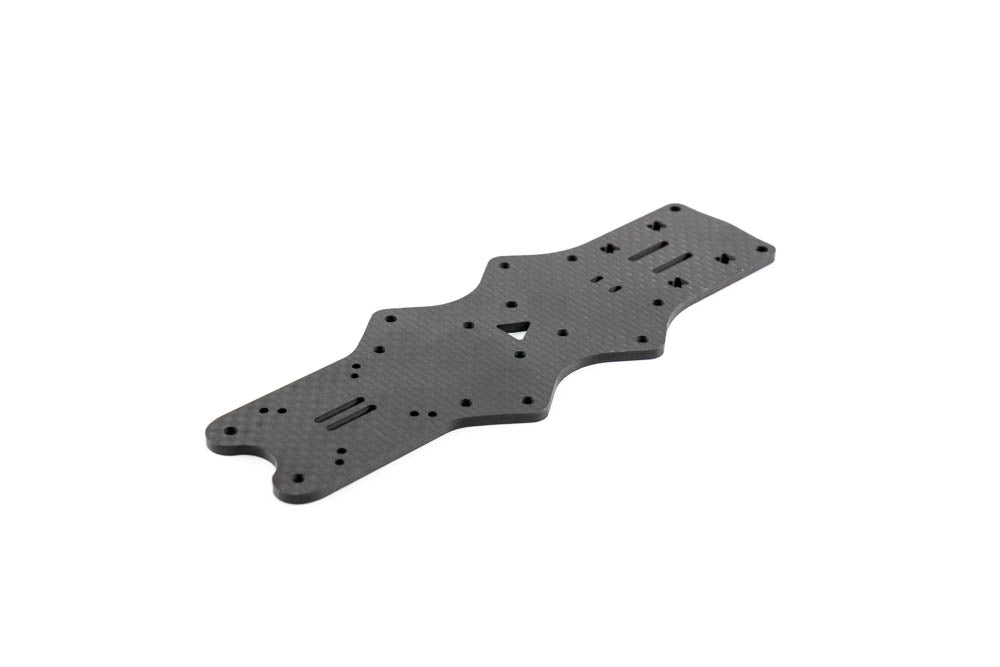

| Top plate |
2.5mm |
| Bottom plate |
2.5mm |
| Mid plate |
2mm |
| Camera Plates (set of 2) |
2.5mm |

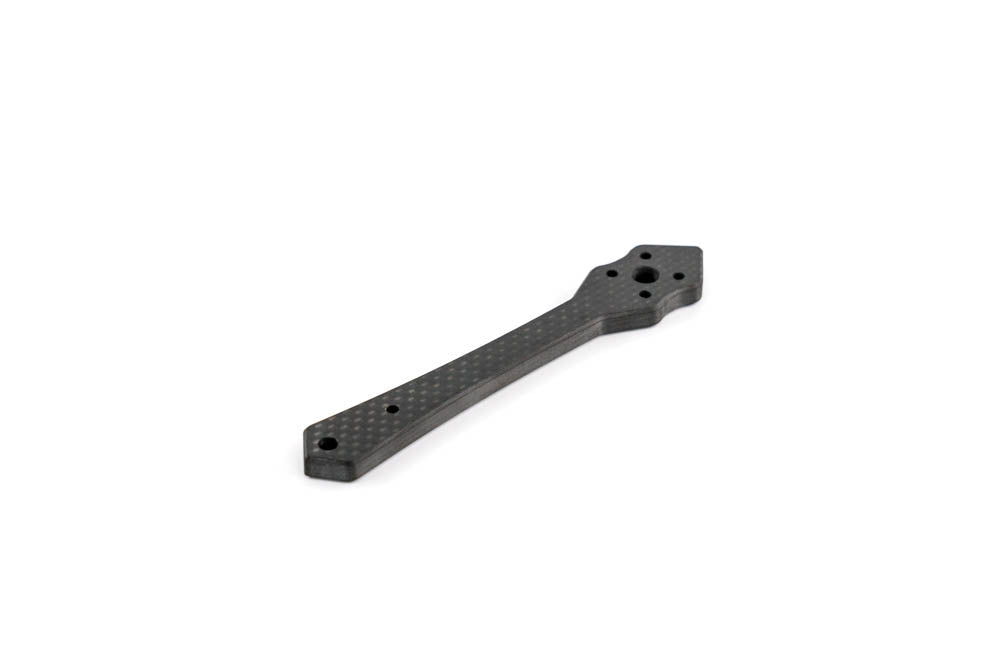

| 4.9" Arm (210mm Wheelbase) |
6mm |
| 5" Arm (222mm Wheelbase) |
6mm |
| 5.5" Arm (233mm Wheelbase) |
6mm |
| 6" Arm (252mm Wheelbase) |
6mm |

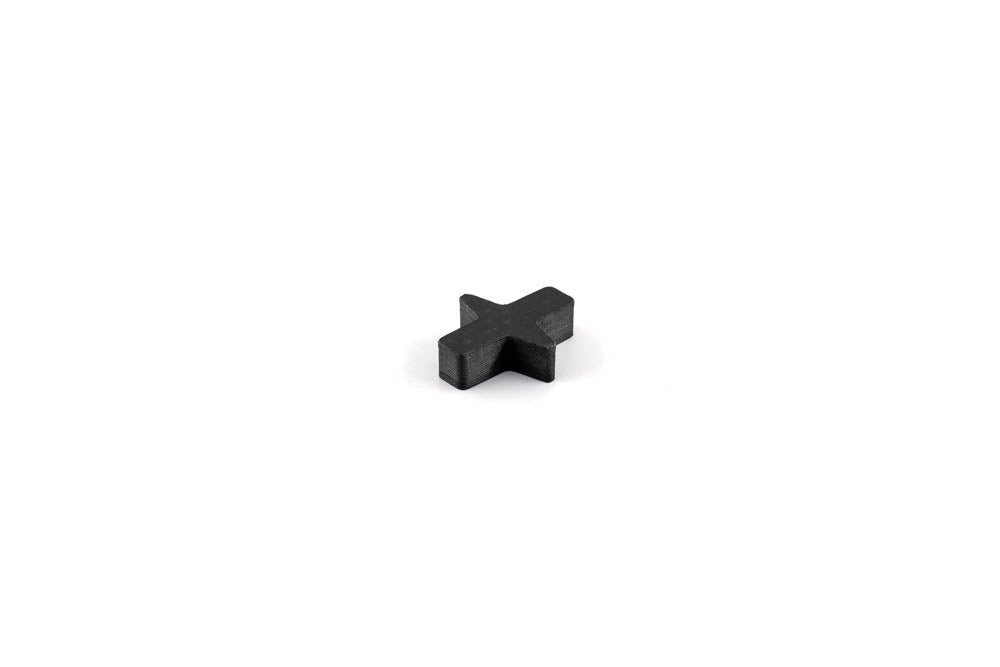

| Arm Key |
6mm |
Hardware
| Part |
Details |

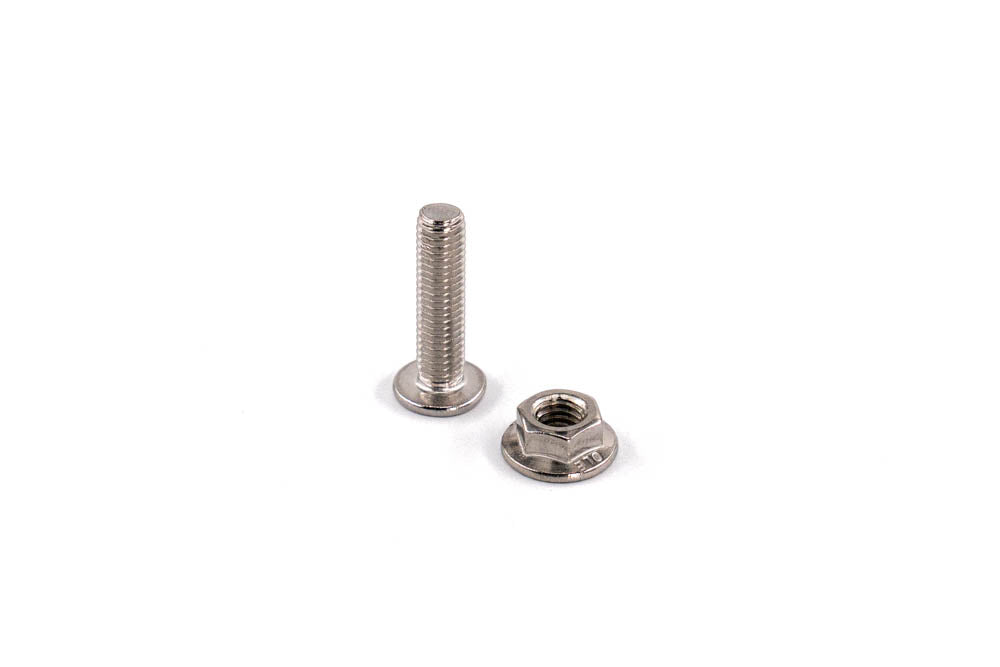

| M5 Mount hardware |
1x M5 20mm Flat Phillips head bolt & M5 Clinch Nut set |
| Luma M3 5x3mm Spacers |
Set of 10 |
| 28mm Aluminium Standoffs |
Set of 8 |
| Li-Po Foam Pad |
3mm EVA Foam |
Rear HD Camera Mount Kit
| Part |
Quantity |
| Rear Mount |
x1 |
| M5 20mm Phillips Flat Head Bolt |
x1 |
| Steel Clinch nut |
x1 |
| Luma 5x3mm Custom spacer |
Set of 4 |
| 12mm M3 Cap head Bolt |
x4 |
| M3 9mm Steel Washer |
x4 |
Luma 5 Rear HD Camera Mount kit
