Luma 25 v2 frame kit

$79.95 AUD

Sale Sold out

Version Luma 25 v2 Frame kit

Quantity

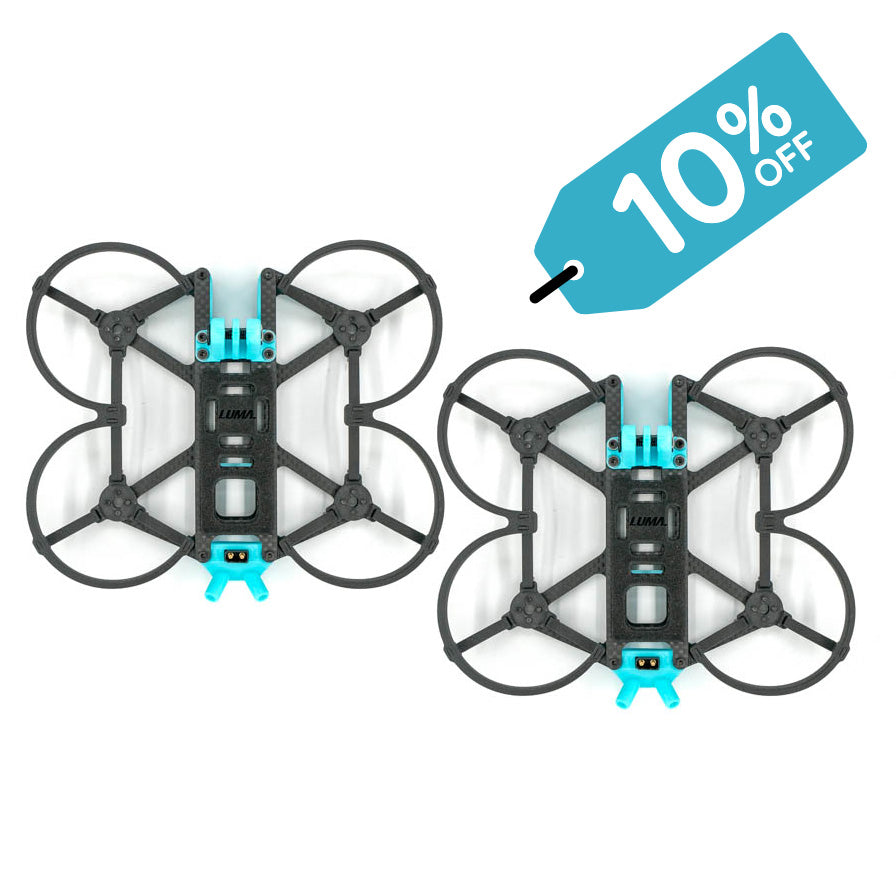

LUMA 25 v2
Cinematic 2.5" Cinewhoop.

The LUMA 25 V2 is our sub-250g 2.5" cinewhoop, featuring practically indestructible carbon-fibre-reinforced nylon propeller guards and designed specifically for Naked GoPro and DJI O4 Pro Air Unit applications.

Developed for real estate, retail, and commercial fly-throughs, the LUMA 25 V2 is designed to transition seamlessly from outdoor to indoor environments. It can squeeze through tiny gaps and bounce off obstacles without leaving a mark, making it an incredibly versatile platform for capturing smooth, dynamic footage in tight spaces.

The LUMA 25 V2 supports 19mm and 20mm FPV cameras, with TPU soft mounts for the DJI O3 Air Unit and DJI O4 Air Unit Pro. It uses a 25.5 × 25.5mm Main stack mounting pattern, along with 20 × 20mm and 25.5 × 25.5mm rear VTX mounting.

Frame Specifications

Frame weight

73.4g including carbon, 3D-printed parts and all hardware
Propeller size

2.5"
Motor mounting

9mm
Battery connection

Hard-mounted XT300 connector
Prop guards

Ultra-durable carbon-fibre-reinforced nylon
Stack height

20mm
Stack support

25.5mm
VTX mounting

20mm & 25.5mm
FPV camera support

19–20mm
FPV camera mounting

Soft TPU mounts included
Camera visibility

Designed for a clean view with zero prop or guard visibility
Front camera mount

Standard GoPro mount compatible with GoPro-style camera mounts
Hardware

12.9-grade steel hardware
Included

Complete 3D-printed parts kit

Designed to Make the Most of 250g

The LUMA 25 V2 was designed around the DJI O4 Air Unit, taking advantage of the 250g limit to run a powerful 1404 4S power system. Rather than chasing an ultra-light 2S design, the additional weight provides improved power, performance, and flight stability. With the O4 delivering excellent image quality, a separate GoPro isn't always necessary, keeping the aircraft compact and comfortably under 250g. This also makes it an attractive option for commercial operators, as sub-250g aircraft can benefit from simpler regulatory requirements and operating conditions in many scenarios.

Stronger, More Accessible Prop Guards

One of the biggest changes in the LUMA 25 V2 is the move from the injection-moulded guards used on the V1 to carbon-fibre-reinforced nylon prop guards, providing greater strength and durability while keeping weight under control. The new guards are also 3D-printable from our STL files, allowing customers to produce their own replacements locally at a low per-unit cost, making the V2 easier and more affordable to maintain.

Easy to Build Light!

Our typical builds have an AUW of 160g without a battery, or 213g with a 450mAh 4S pack. The build uses T-Motor 1404 4600KV motors, a JHEMCU F4 AIO flight controller, and the DJI Radio system with the DJI O4 Pro Air Unit.
