LUMA 5 PRO
Cinematic 5" Dead-cat frame.

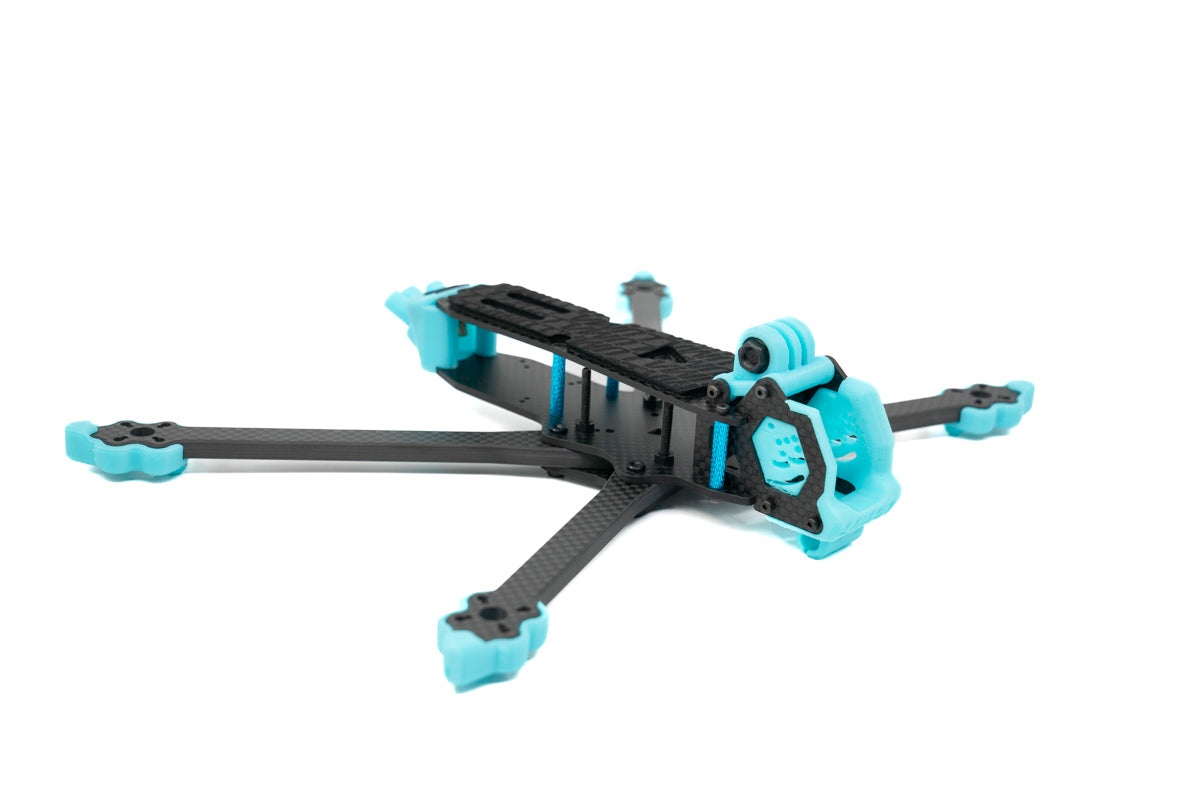

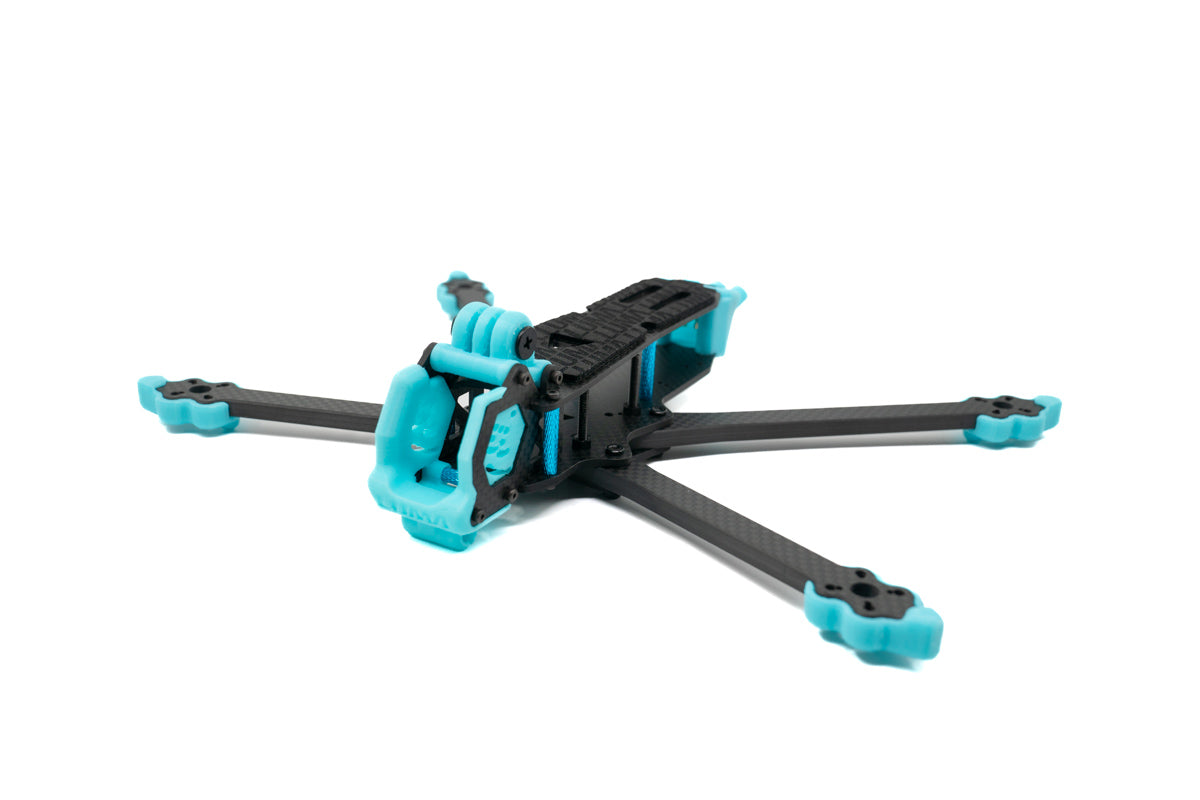

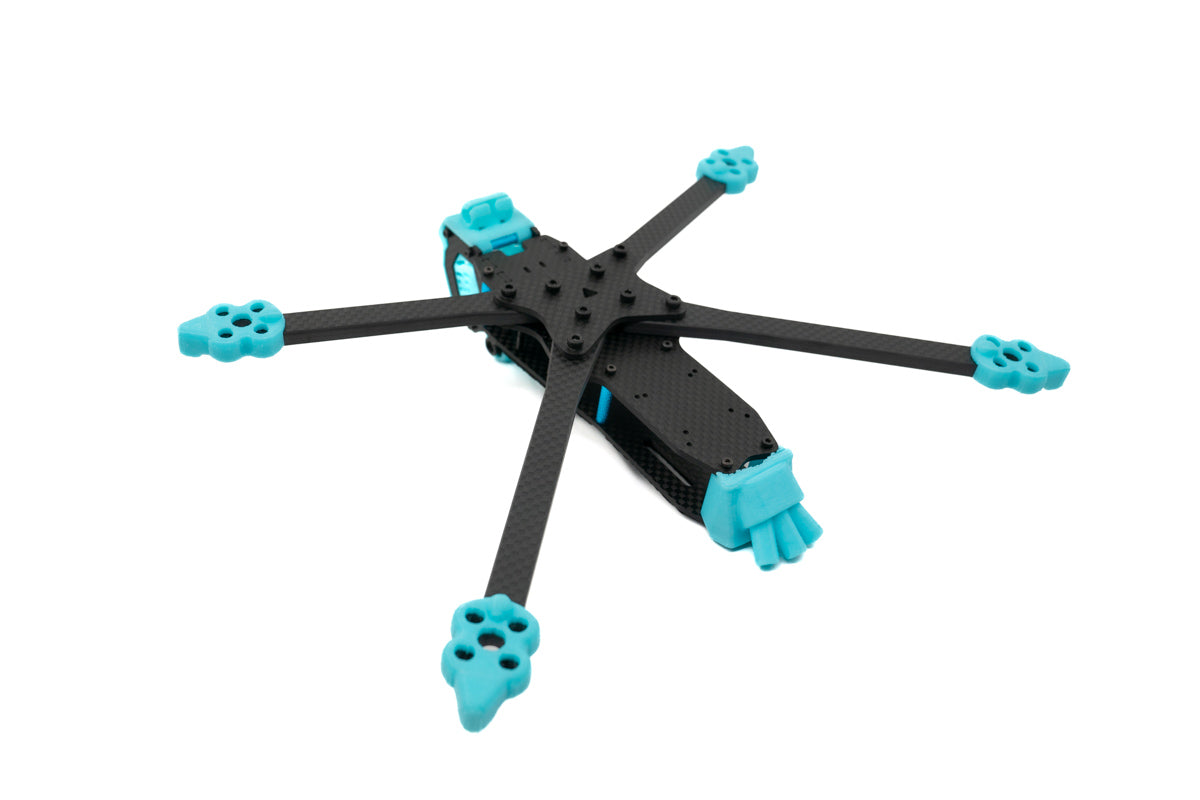

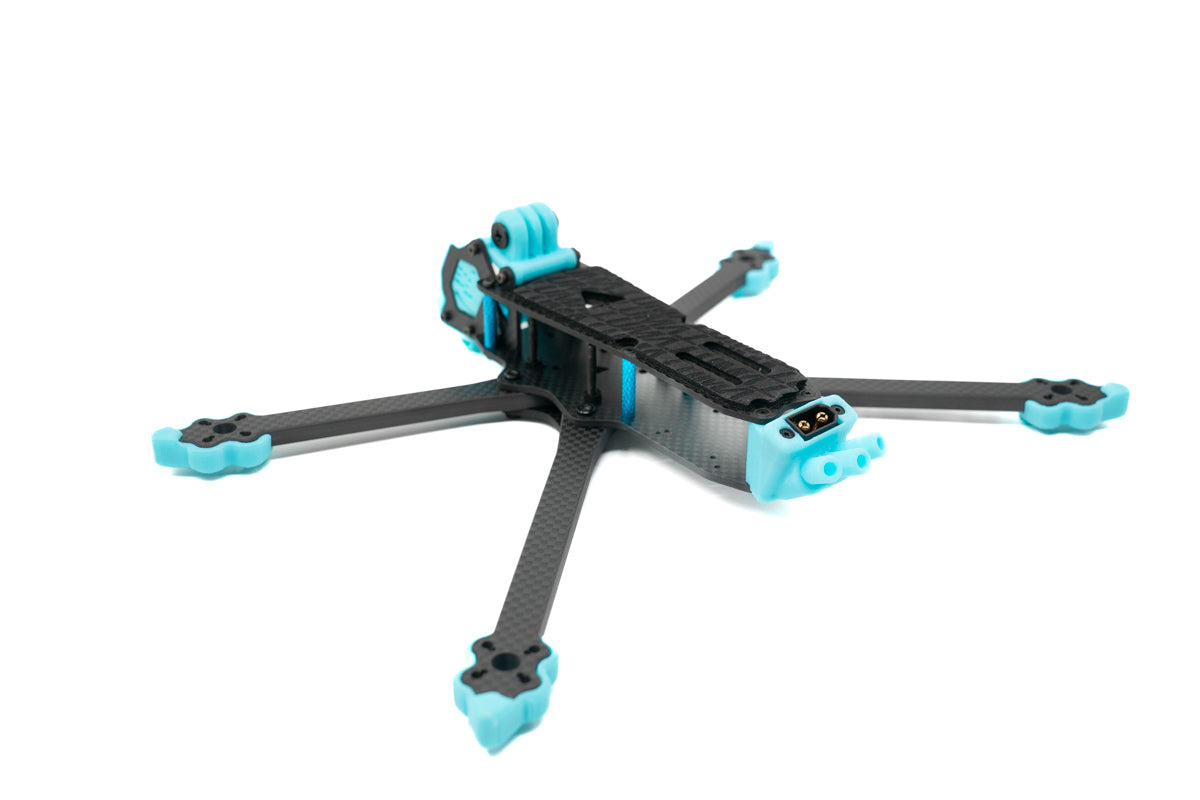

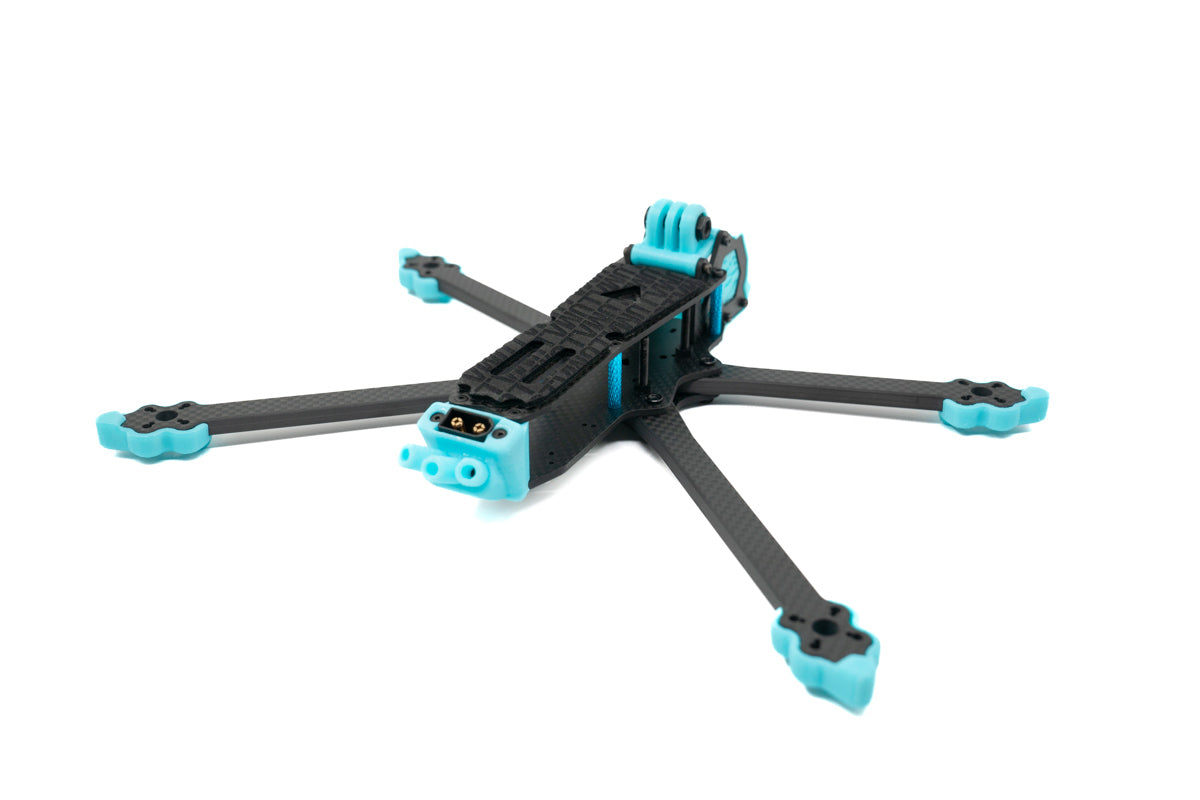

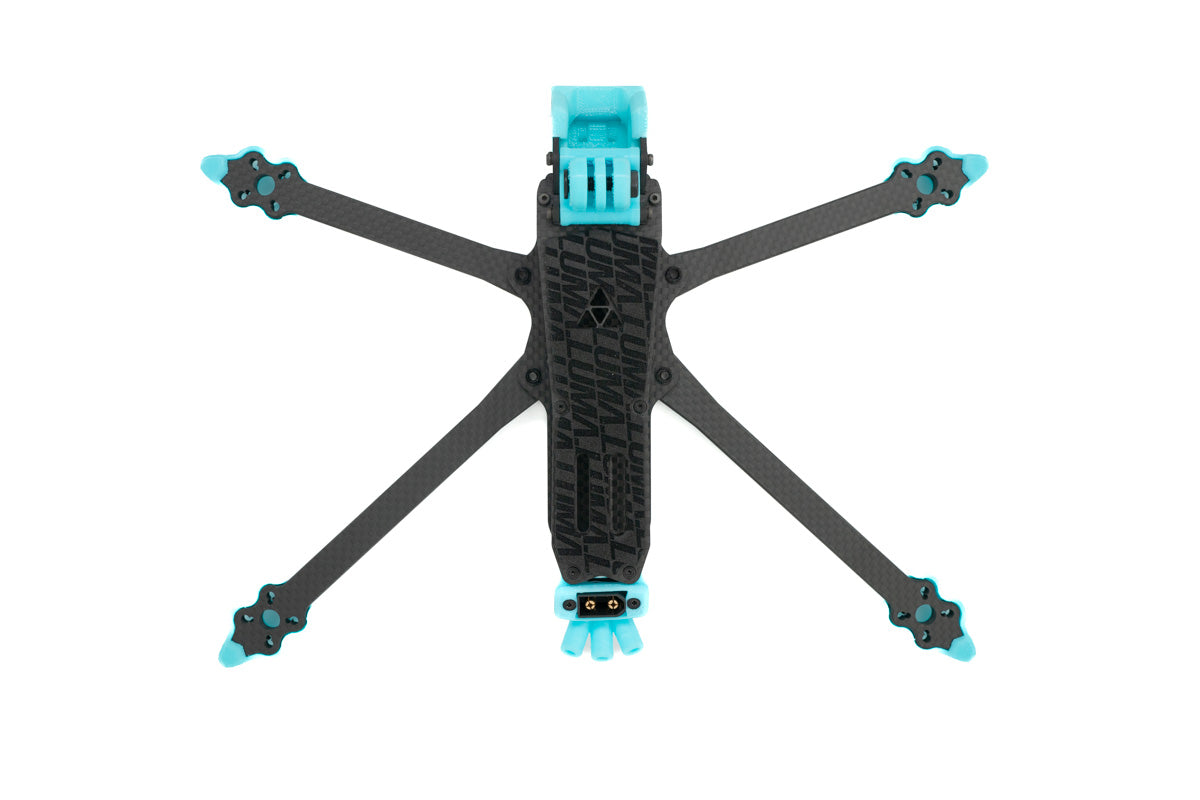

The LUMA 5 PRO is our flagship 5" dead-cat cinematic frame, refined for clean flying with full-size GoPro and DJI Osmo Action cameras.
Its true dead-cat layout keeps the props completely out of shot, while the square geometry provides a balanced, predictable feel in every direction. This makes the LUMA 5 PRO ideal for smooth cinematic lines, precise control, and confident long-range shots.
Designed around modern FPV electronics, the LUMA 5 PRO supports 19mm and 20mm FPV cameras, with TPU soft mounts for the DJI O3 Air Unit and DJI O4 Air Unit Pro. It accommodates a wide range of flight controller and ESC stack configurations, including 20 × 20mm, 25.5 × 25.5mm, and 30.5 × 30.5mm mounting patterns, along with 20 × 20mm and 25.5 × 25.5mm rear VTX mounting.
Built to go the distance, the LUMA 5 PRO combines durable, replaceable 6mm arms with a competitive all-in frame weight of just 168.5g. The front-mounted RX antenna position helps keep your radio signal solid and free from frame obstruction, giving you confidence both on the way out and on the way home.

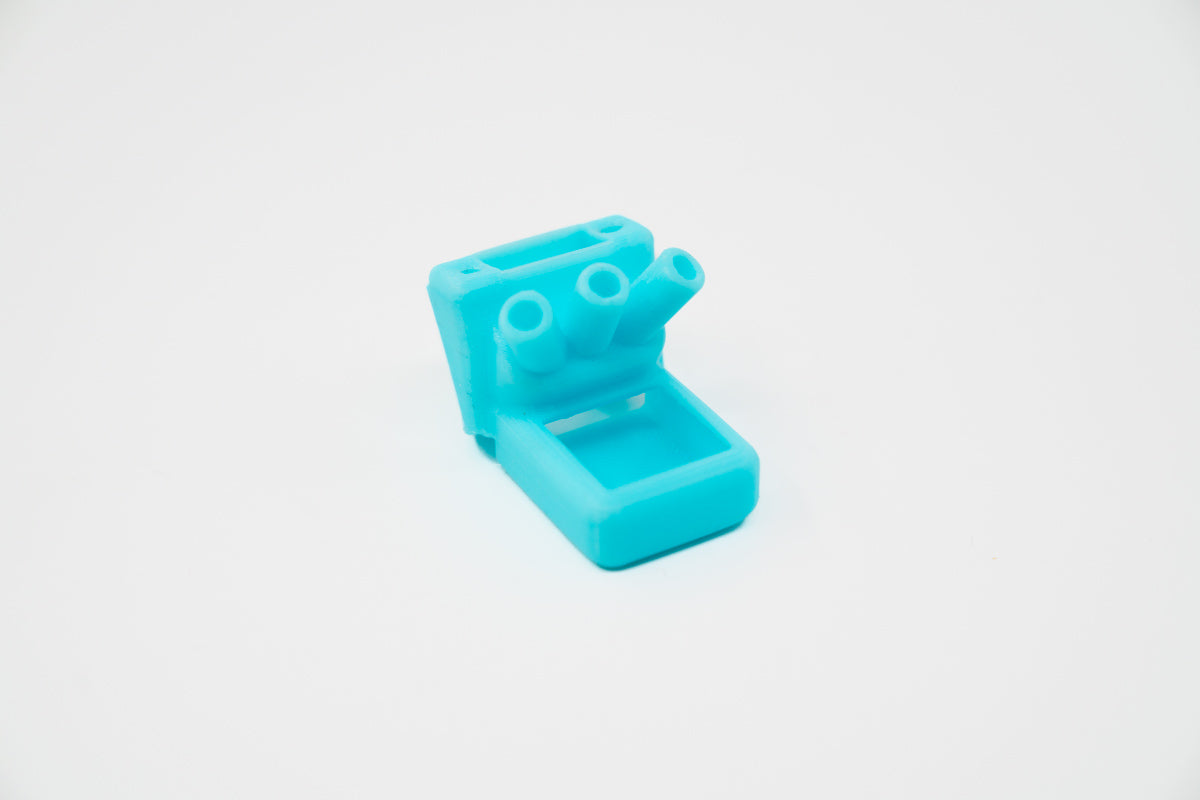

Every kit includes a comprehensive 3D-printed parts kit, spare hardware, zip ties, and LUMA-branded LiPo straps — everything you need to get building straight out of the box.
Frame Specifications
- Frame weight: 168.5g including carbon, hardware, TPU components and XT60 connector
- Wheelbase: 262mm
- Propeller support: Up to 5.1" props with standard 5" arms
- Geometry: True dead-cat layout

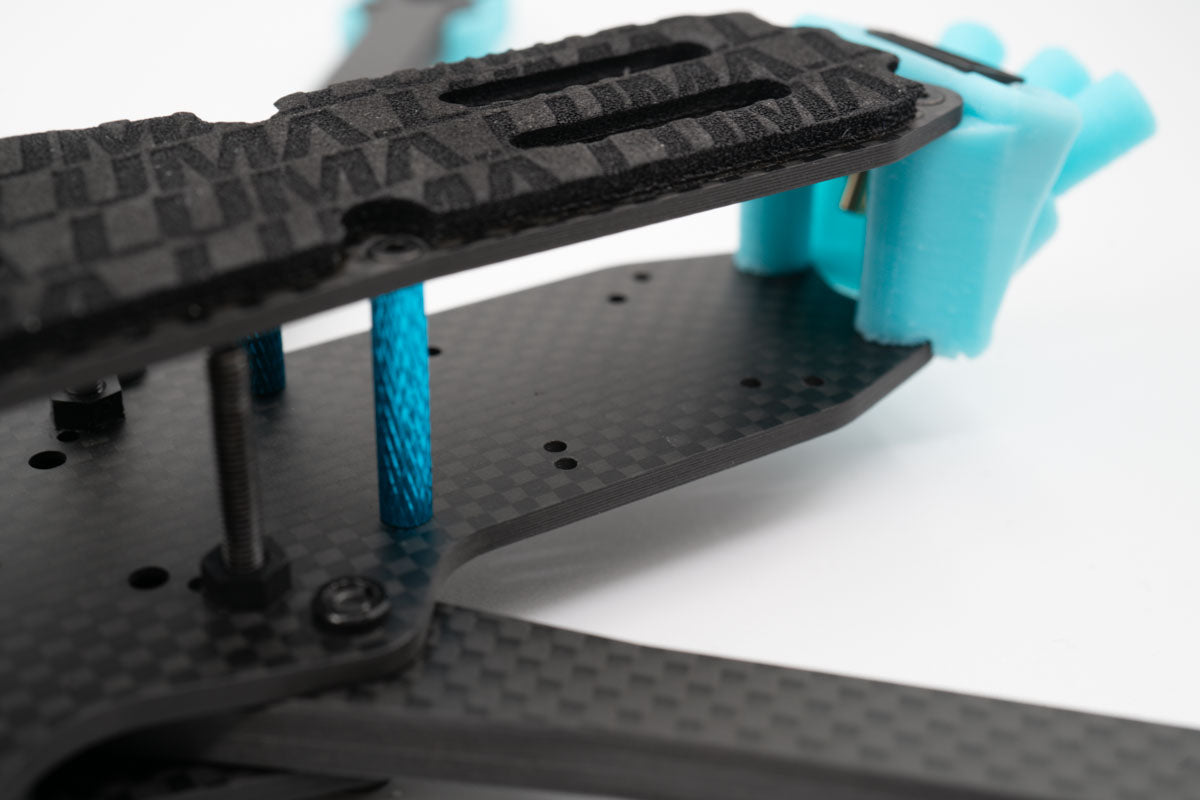

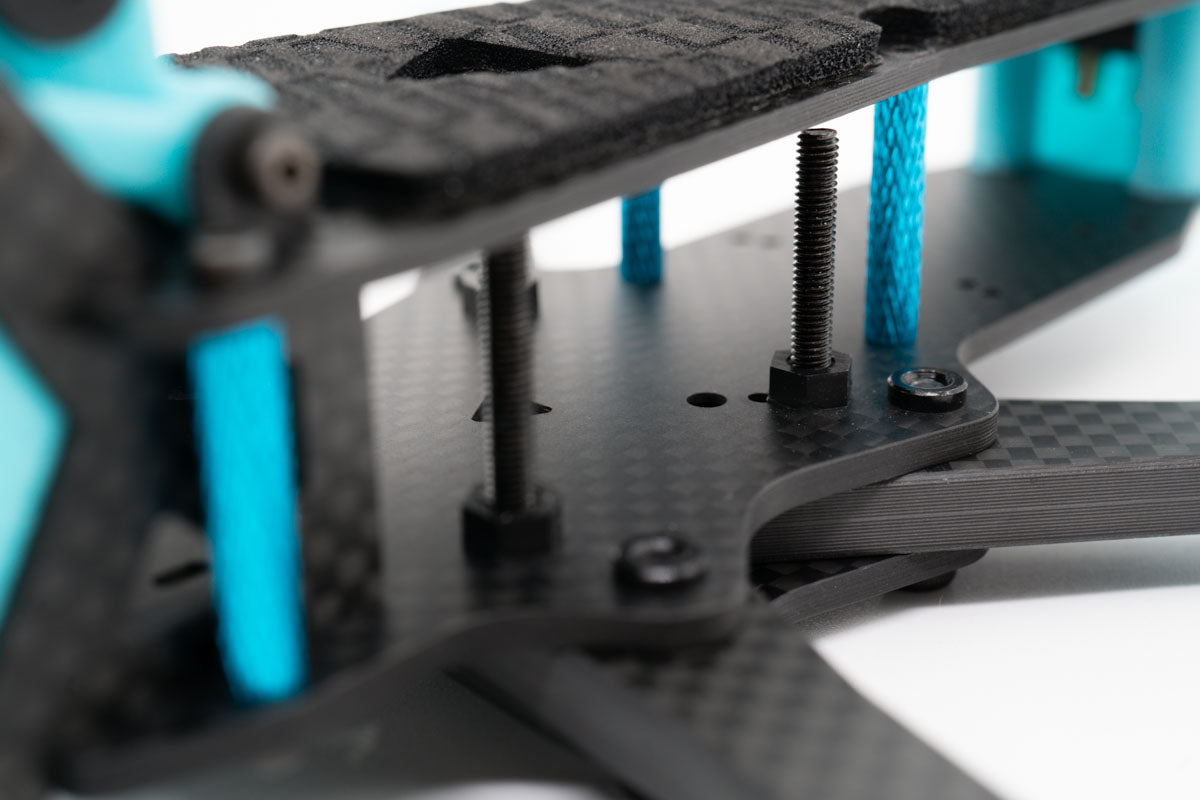

- Deck height: 20mm, supporting stacks and VTX units up to 20mm tall

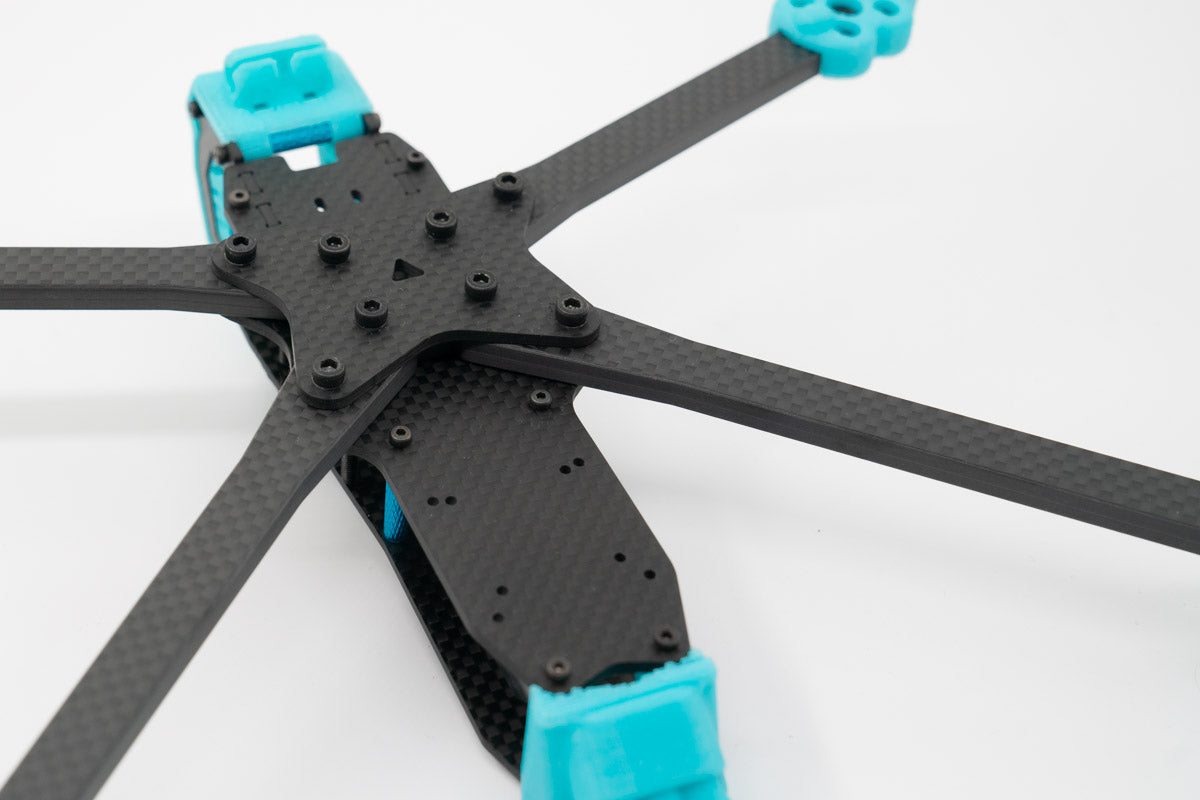

- Main stack mounting: 20 × 20mm (M3), 25.5 × 25.5mm (M2) and 30.5 × 30.5mm (M3)
- Rear stack mounting: 20 × 20mm (M2) and 25.5 × 25.5mm (M2)
- Rear VTX support: Fits VTX units up to 42.5 × 42.5mm

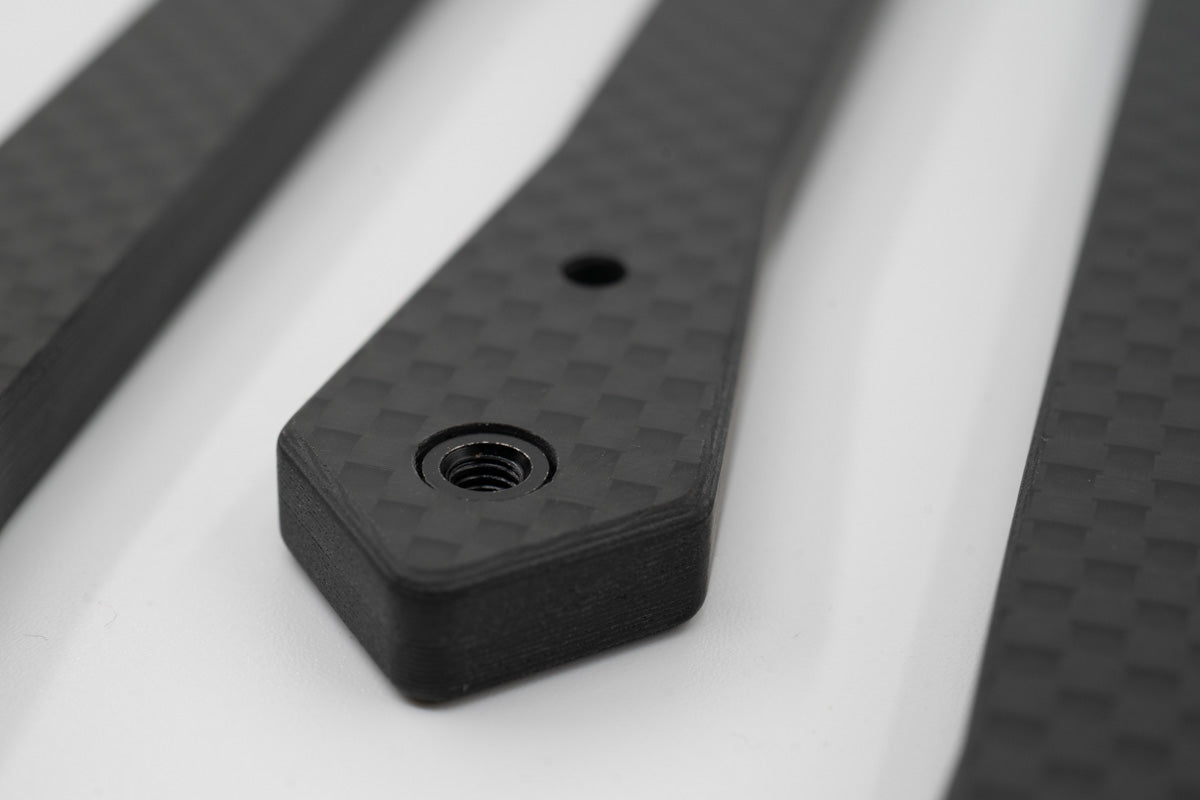

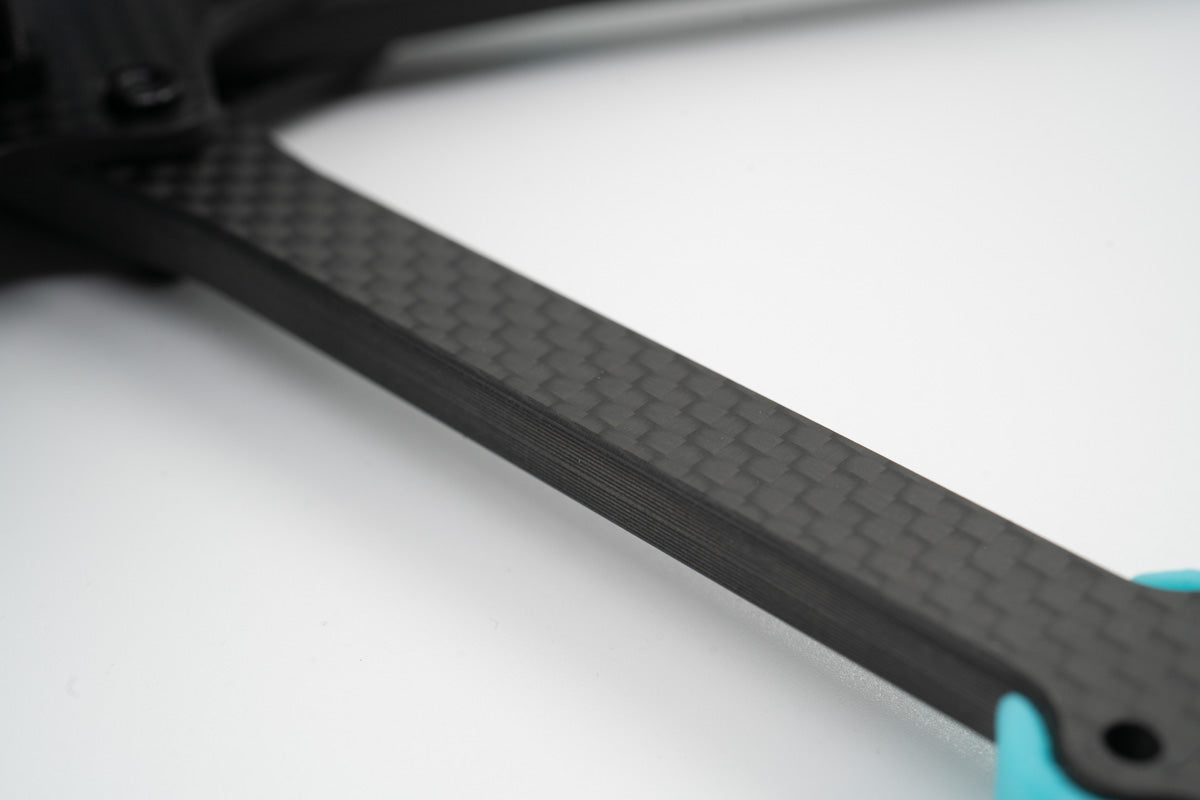

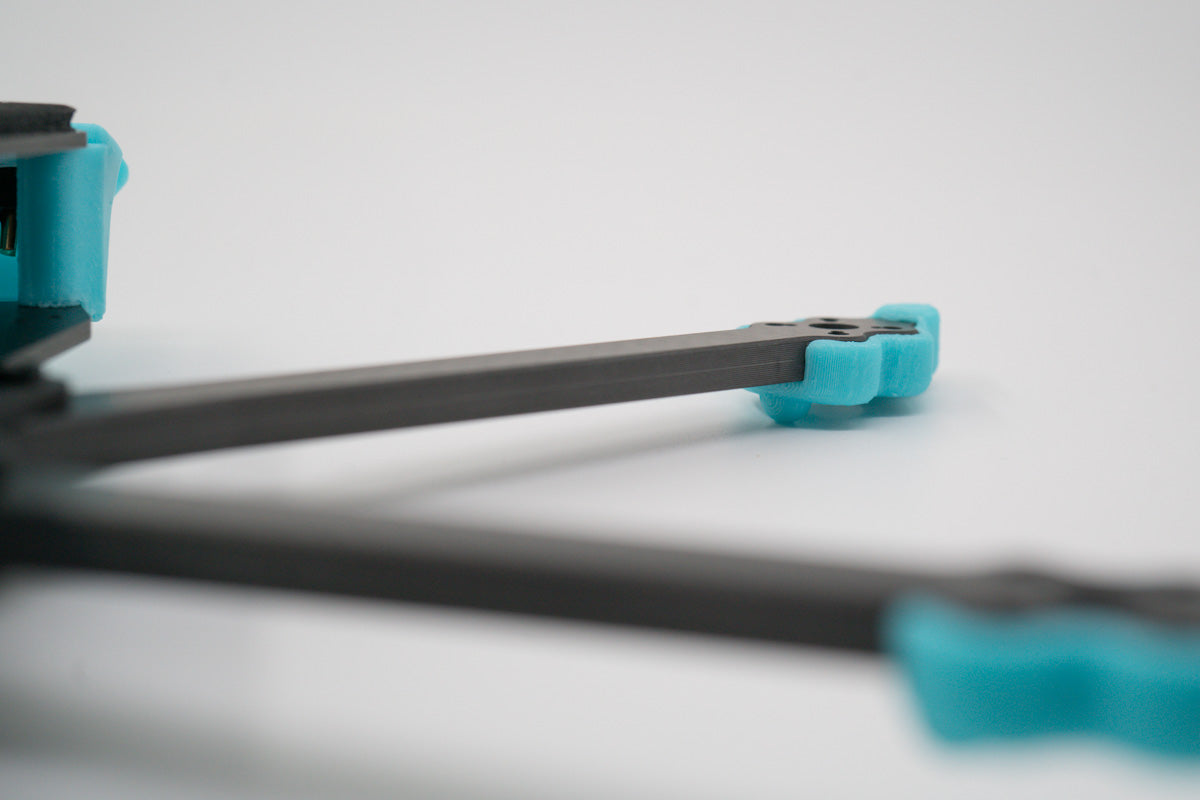

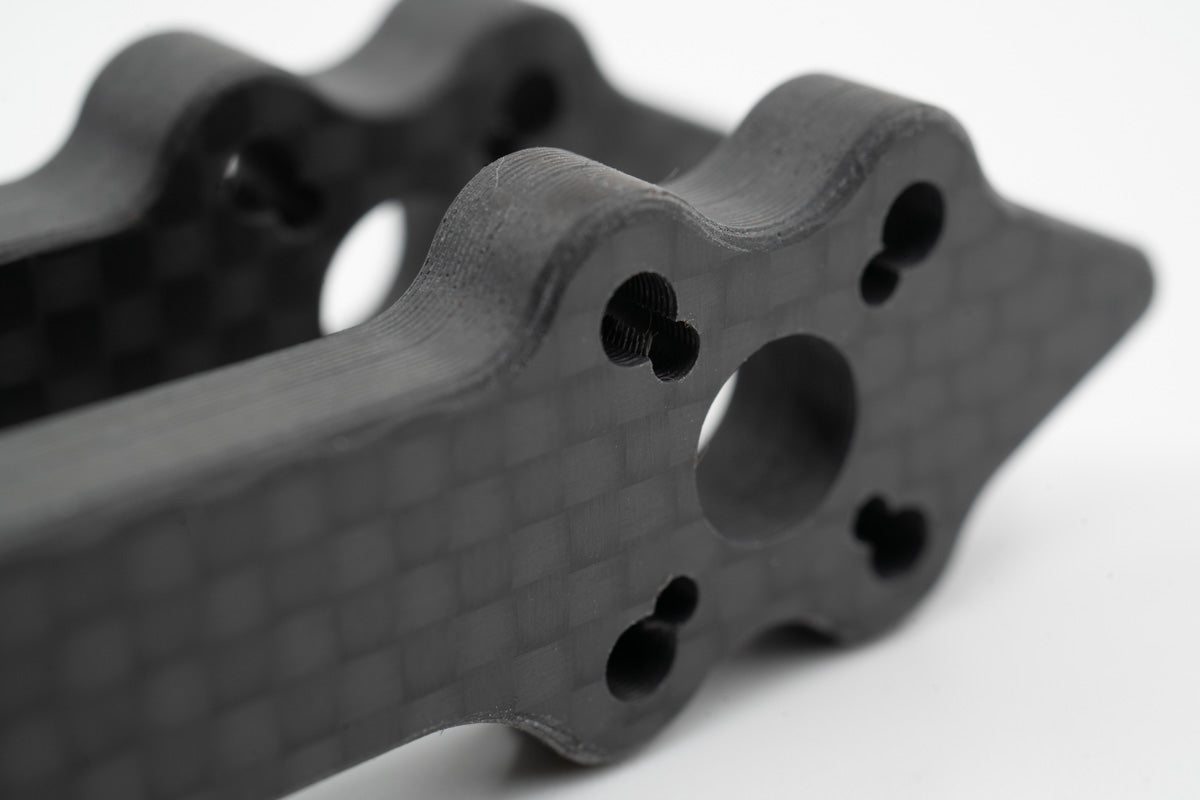

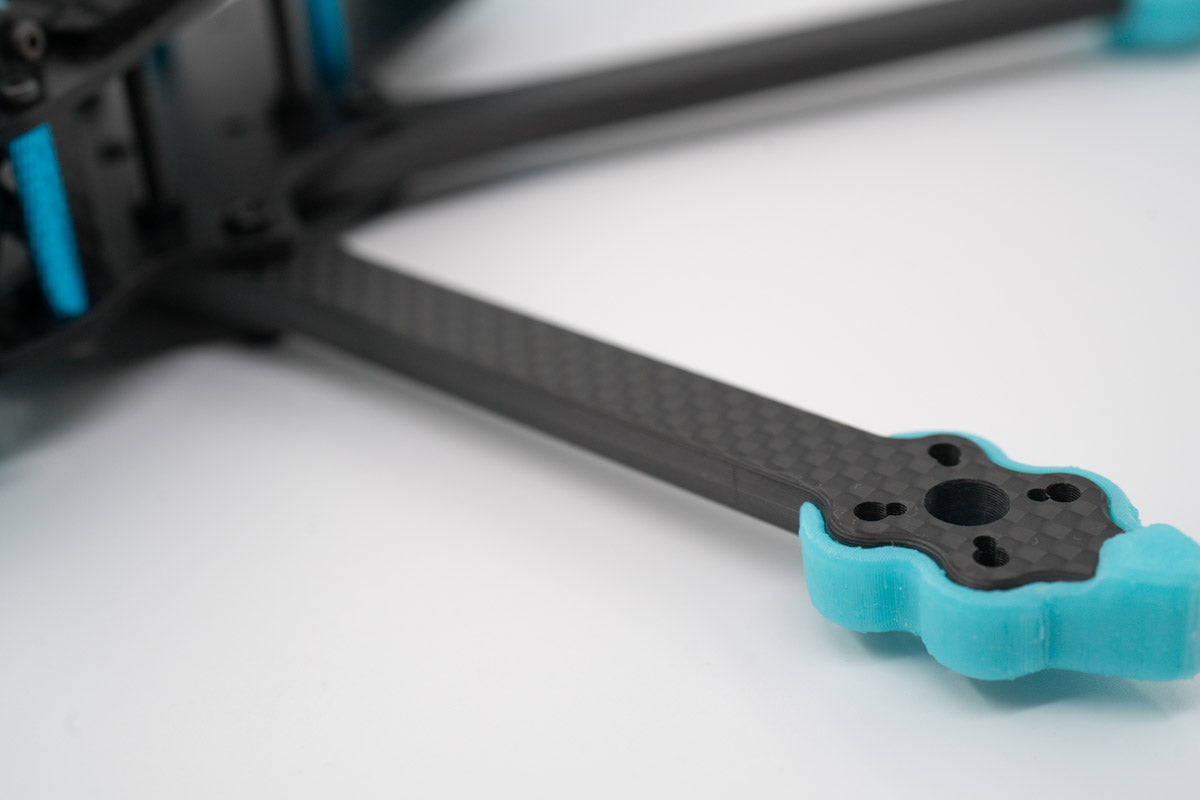

- Arms: Replaceable 6mm arms with dedicated front and rear designs

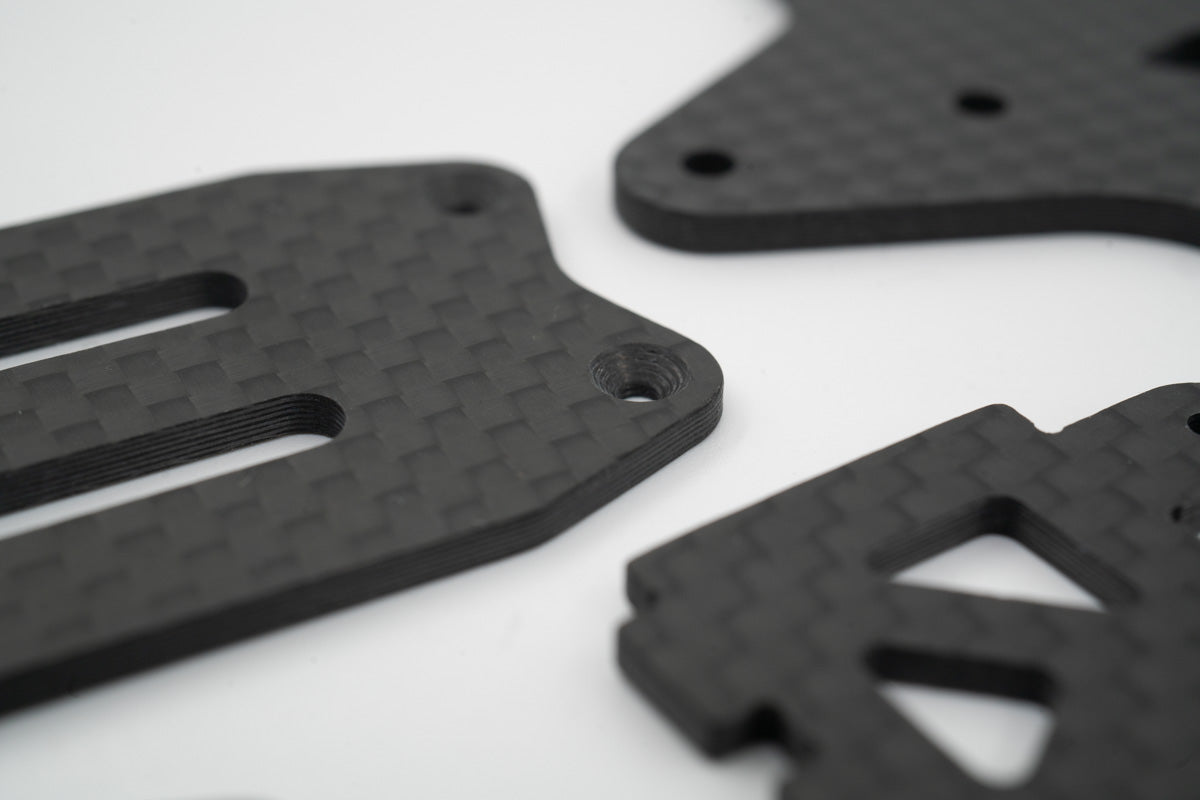

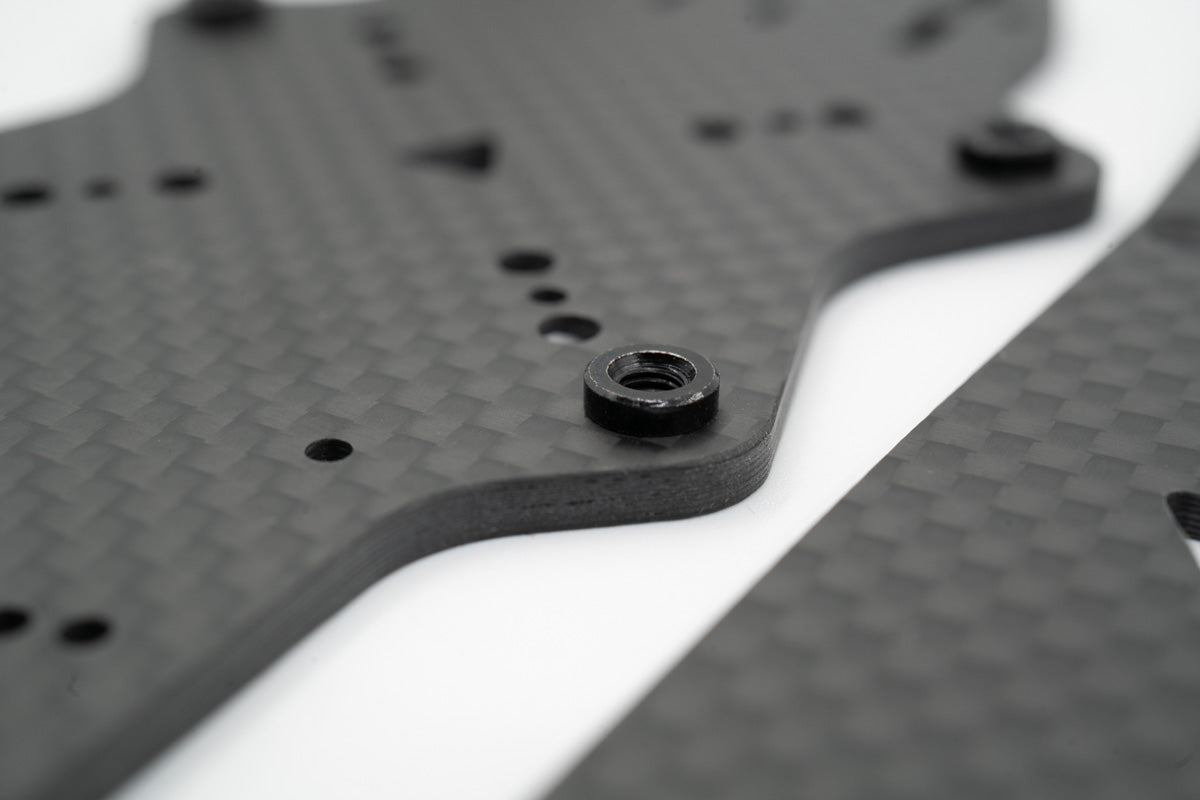

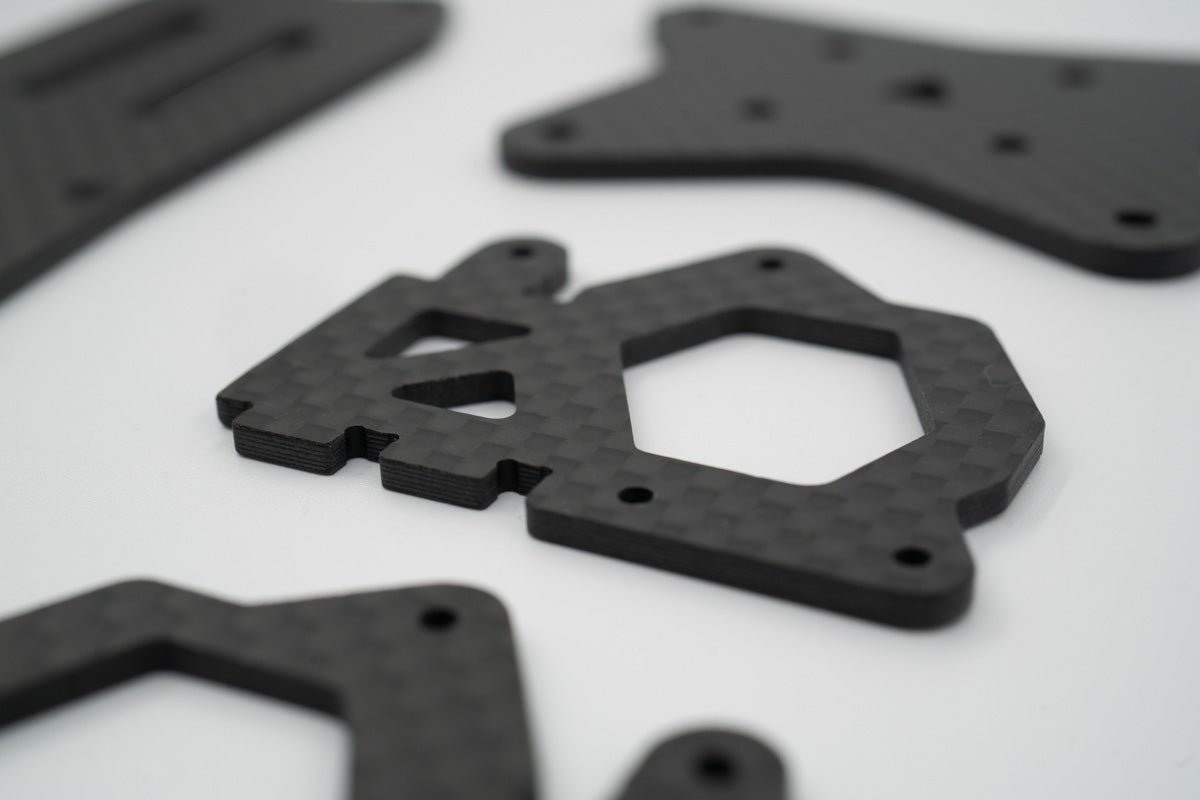

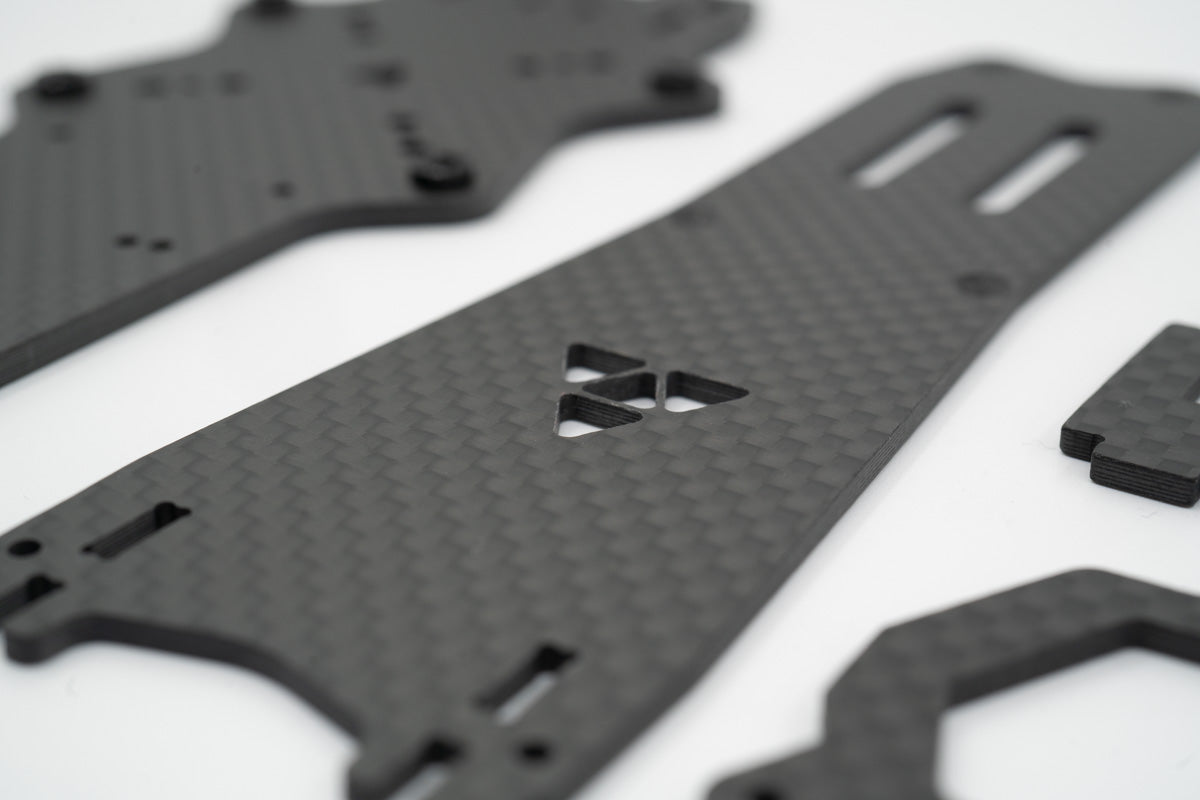

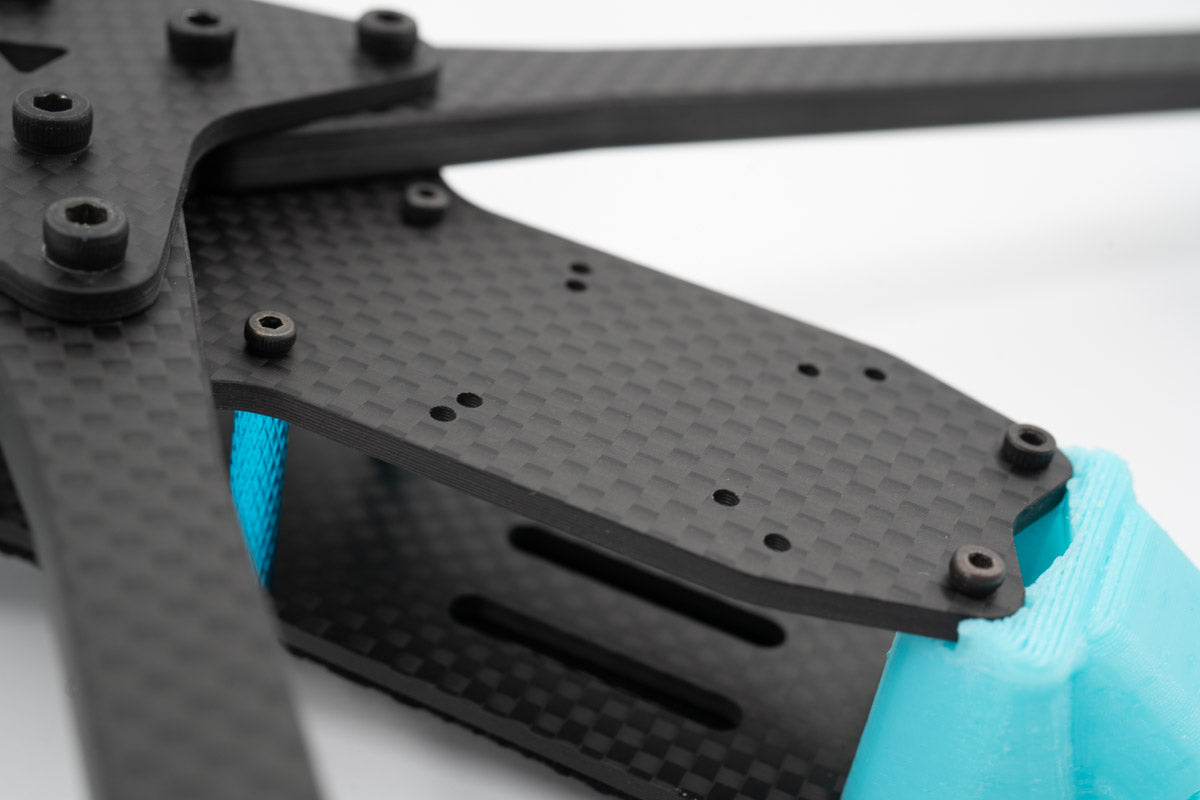

- Mid plate: 2.5mm
- Bottom plate: 2.5mm
- Top plate: 2mm
- FPV camera compatibility: 19mm and 20mm cameras

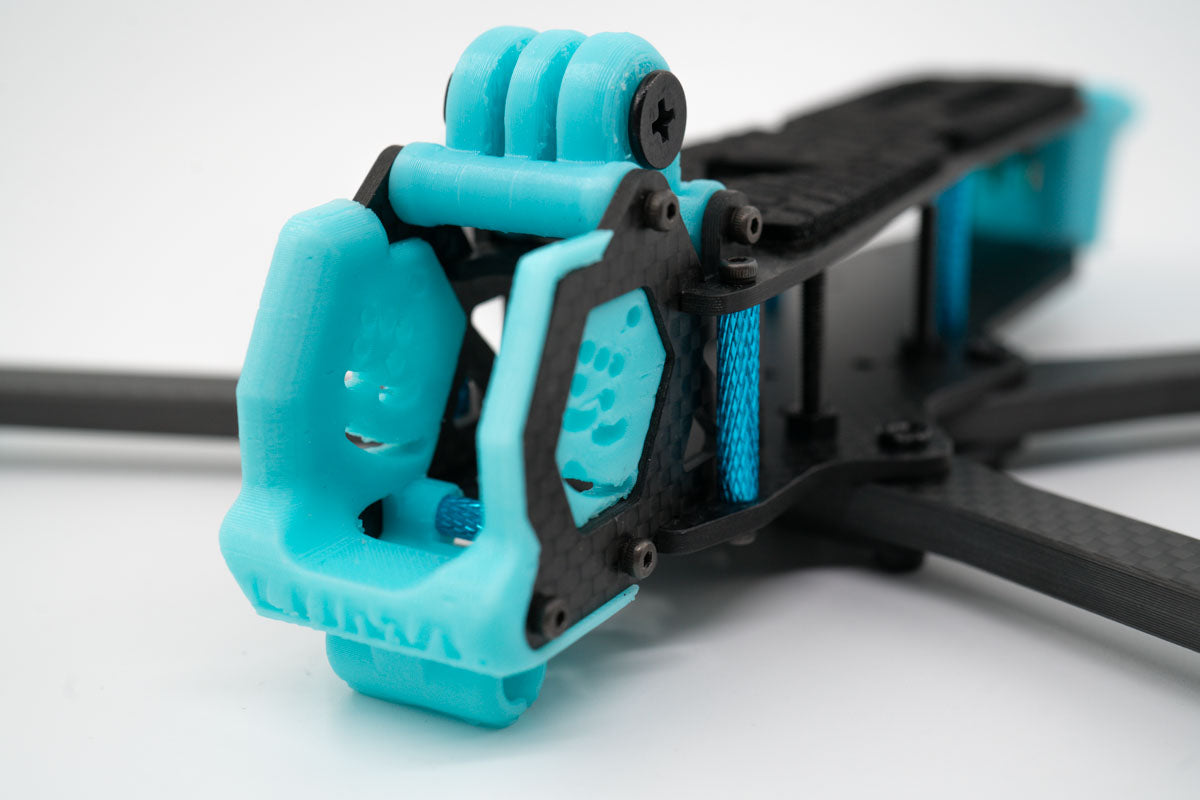

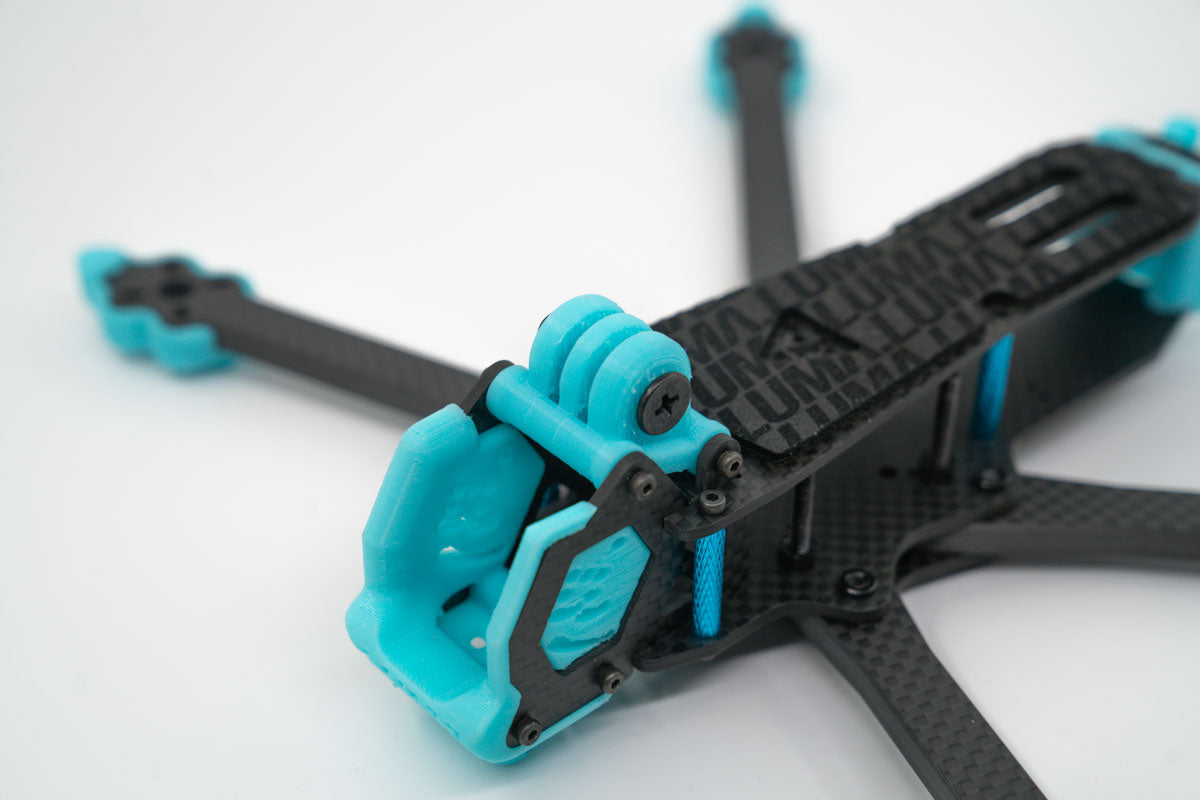

- Camera mounts: TPU soft mounts for DJI O3 Air Unit and DJI O4 Air Unit Pro
- Camera visibility: Designed for a clean view with zero prop or guard visibility
- Antenna mounting: Front Immortal T mount and rear VTX antenna mount for single or dual antennas

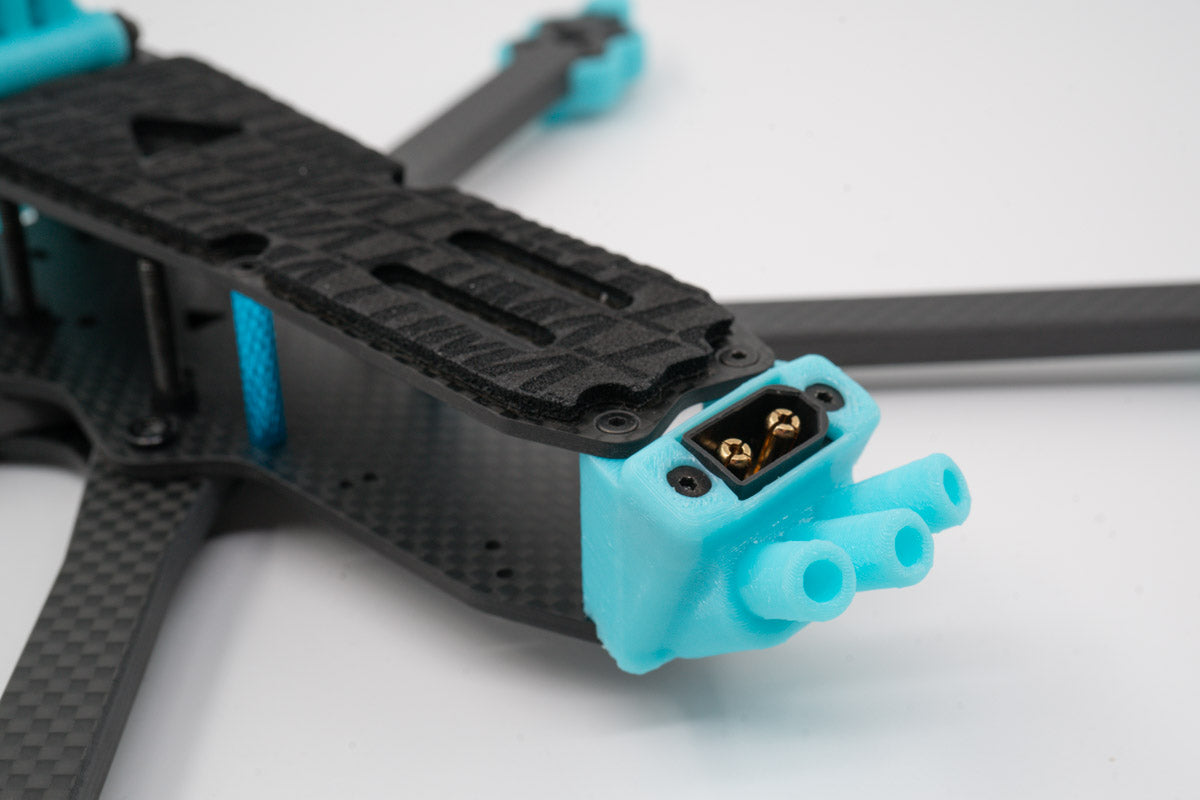

- Battery connection: Hard-mounted XT60 connector

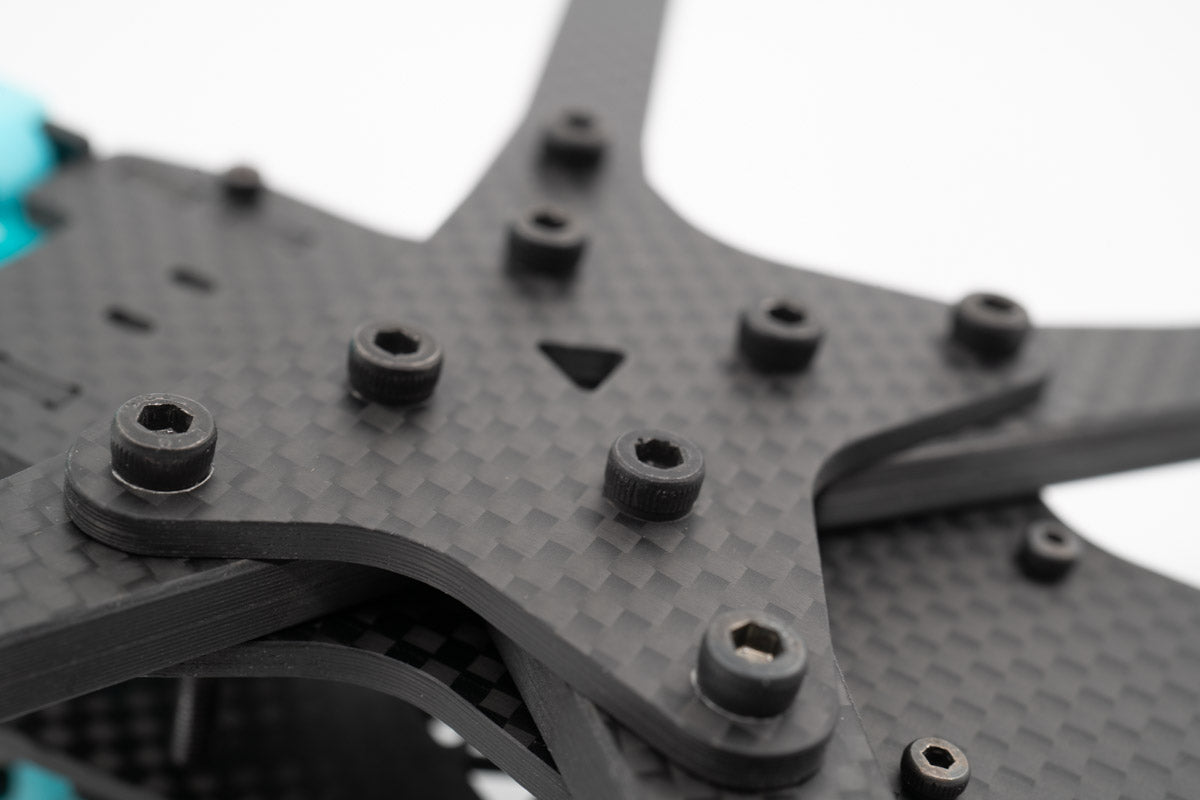

- Hardware: 12.9-grade steel hardware
- Included: Complete 3D-printed parts kit
