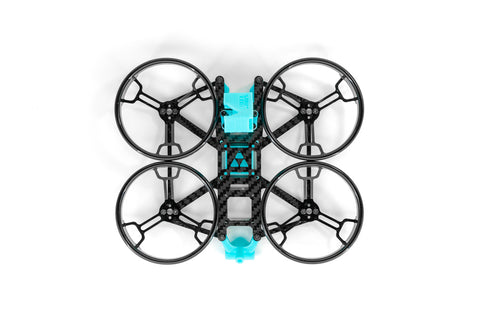

The Luma 25 is our Sub 250g Cinewhoop frame for Naked gopro applications.
Designed with symetrical top and bottom plates the Luma 25 can be built as either a pusher or puller quad.
EASY TO BUILD LIGHT!
A typical build weighs in at only 240.5g inc Naked GoPro, Vista and 450mah 4s pack or 208g with the Airunt O3 and no Naked GP at all!
Revision 1.1 Updated version :
Includes rear 25.5x.25.5 M2 holes
Now comes in 3k Black finish carbon.
View the recommended parts list here.
Kit includes DJI Airunit O3 Mounts
This is the full kit containing everything you need to put together either an analog or digital build.
Including Injection Moulded Guards, 3d printed parts, Carbon fibre, High quality hardware and lots of spares!
All kits include standard front Gopro Mount.
Frame Key Features:
- Symetrically designed to be built in either Standard or Pusher configurations.
- 62g frame weight.
- 129mm wheelbase.
- Sub 250g AUW (inc Naked GP and 4s 450mah).
- 2mm Carbon Top plate.
- 2.5mm Carbon Bottom plate.
- Injection moulded 2.5" Prop guards. (Blue or Black options available)
- Slammed 15mm stack height.
- HD Vista/Airunit 03 / Analog compatible.
- Main 25.5x25.5mm & 20x20 stack support.
- Rear 20x20 & 25.5x25.5 support.
- Airunit O3, Mini, Micro and Nano FPV camera options included.
- Support for 2.5" propellers.
- Front Standard Gopro mount (suits any gopro style camera mount)
- Rear Airunit O3, Antenna mount with T & (Crossfire/Tracer/ELRS etc)
Check out the FAQ page and you'll most likely find the answer there, if not send us a message via the contact page.

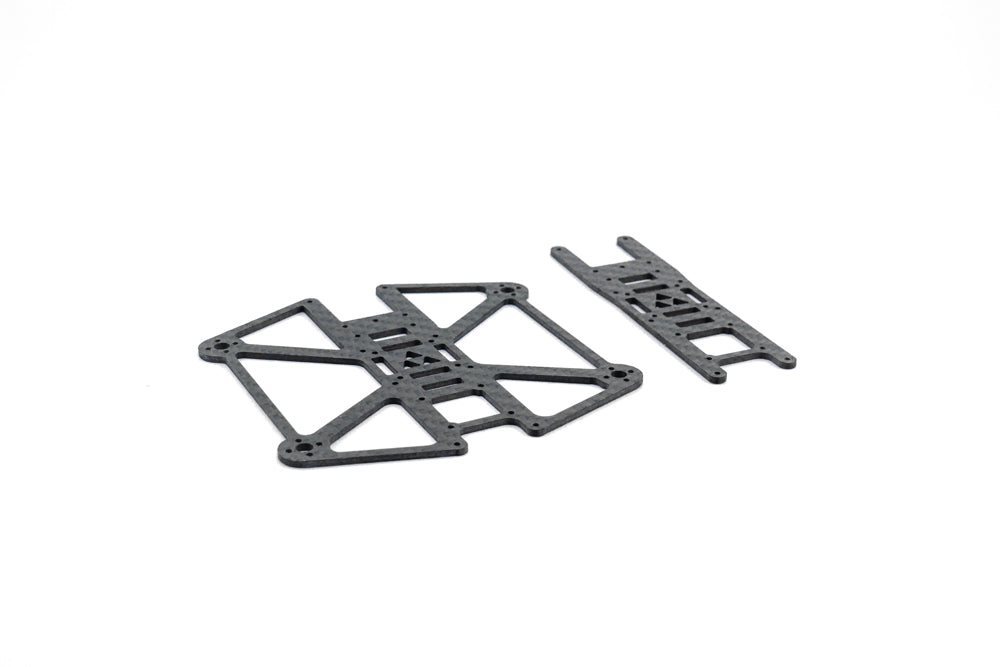

|1x||2mm Top-plate.||4x||M2 15mm Aluminium Standoff.||5x||2.5" Prop Guards.|
|1x||2.5mm Bottom-plate.||4x||Steel M2 18mm.||Extras:|

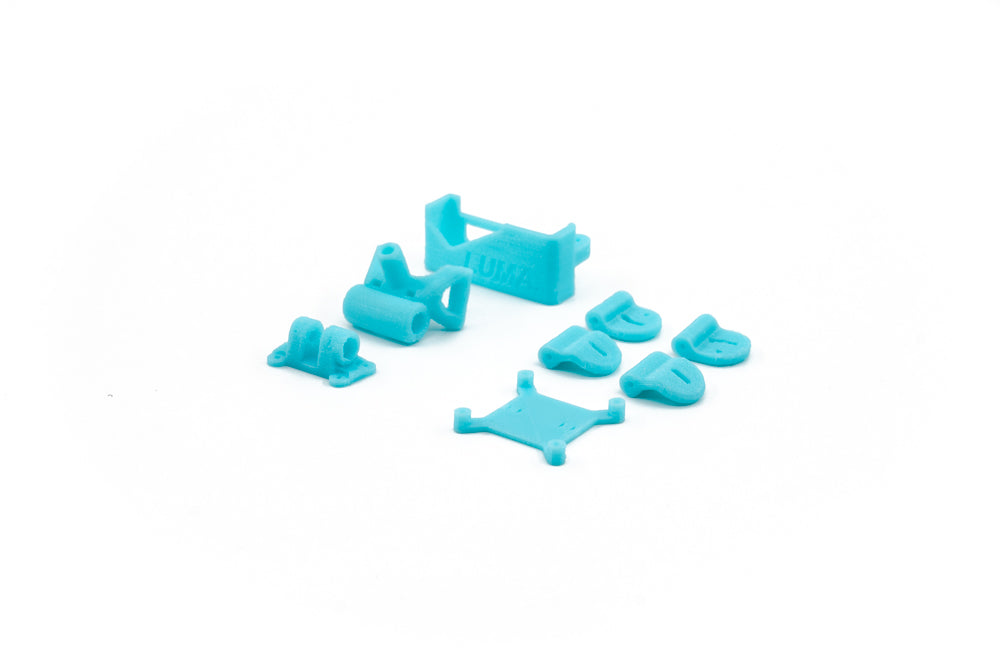

|TPU Parts:||16x||Steel M2 6mm.||2x||Zipties.|
|2x||Mini/Micro Fpv Cam Mounts||12x||Steel M2 8mm.||1x||250mm Lipo Strap
|2x||Nano Fpv Cam Mounts||1x||Steel M3 16mm.|
|1x||Front Gopro Standard Hard-mount||12x||Steel M2 Nut.|
|1x||DJI Airunit O3 Mount Kit||4x||Steel M2 washer.|
|1x||Rear Immortal T & Vista Antenna mount.||4x||Steel M3 washer.|
|1x||25.5x25.5mm Rx Mount.|
|1x||20x20mm Rx Mount.|
