Luma 3 Complete frame kit

  • Sale
  • Regular price $87.41

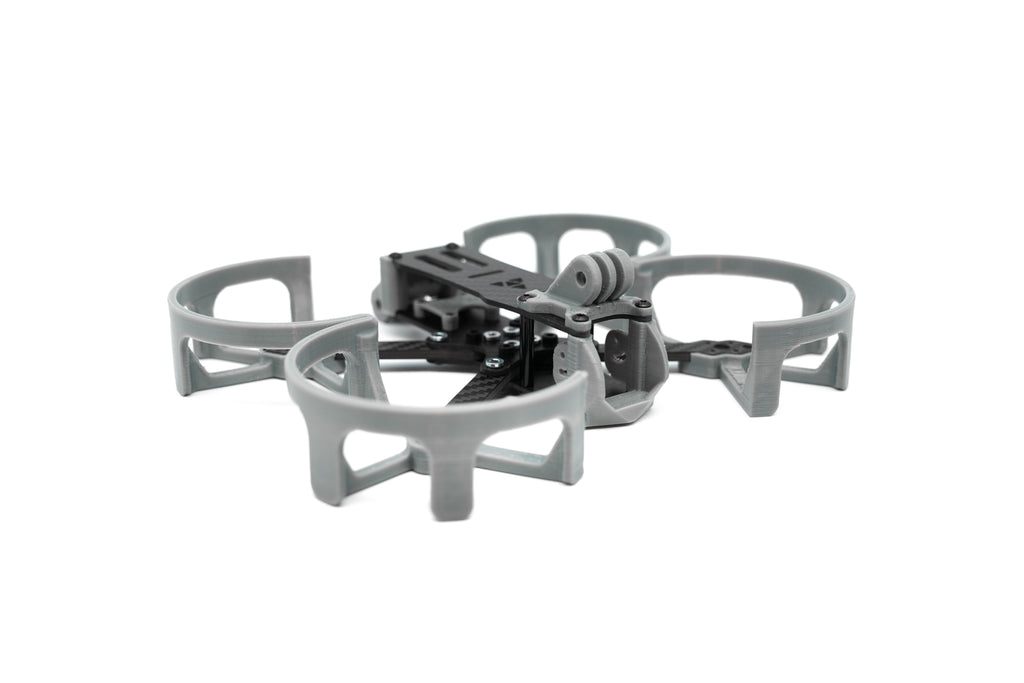

The Luma 3 is our industry standard 3" Cinewhoop frame, it's designed for getting those precise indoor and outdoor shots while carrying a fullsize Gopro and includes TPU Prop protection allowing it to bounce of all the things.





This kit contains everything you need to put together either an analog or digital build.

Including 3d printed parts, Carbon fiber, High quality hardware, Lipo straps and lots of spares!

NOTE: All orders for LUMA 3 complete kits have a 48 hour processing time to allow us to print all the TPU parts.

Parts will be supplied in the Luma blue colour by default.

There are two options for Front FPV Camera:
20mm MINI & 14mm NANO

There are also 2 Rear Antenna options:
Vista style antenna and SMA style antenna.

Please specify what option of each you require in the order notes. - if not we will contact you via email for confirmation prior to printing.


Frame Key features.

  • HD Vista / analog compatible.
  • Dual 20x20 stacks.
  • Replaceable 4x10mm arms.
  • 12x12mm M2 motor mounts.
  • Split deck design with 2mm plates.
  • Rigid design TPU guards.
  • Mini, Micro and Nano FPV camera compatible.
  • Vibration dampened main stack mounting.
  • Standard or 90° top mounted battery options.
  • Support for up to 3.1" propellers.
  • Front and rear GP hard mounts.
  • Various Antenna mounting options.
  • 3K Carbon Fibre.
  • 12.9 Grade Steel Hardware.


Got questions?

Check out the FAQ page and you'll most likely find the answer there, if not send me a message via the contact page.



View the recommended parts list here.

View the Luma 3 build guide here.



Kit Contents:


Hardware: Carbon:
4x 26mm Aluminum standoff. 1x 2mm Top-plate.
2x 20mm Aluminum standoff. 1x 2mm Mid-plate.
12x Steel M3 8mm. (12.9 grade) 1x 2mm Bottom-plate.
8x Steel M3 10mm. (12.9 grade) 4x 4mm Arms.
4x Steel M3 20mm. 1x 4mm Arm Lock.
8x M3 Steel Pressnut. Extras:
4x M3 Silicone soft-mount gummies. 4x Zipties
4x M2 Steel 8mm bolt.
16x M2 Steel 10mm bolt.
8x M2 Steel 20mm bolt.
4x M2 Steel Nut.
20x M2 Steel washer.
TPU parts:
1x Front FPV Camera mount and bumper.
2x Propguards.
1x Rear Antenna and Gopro Mount.
1x Front GoPro Hard mount.
1x
Rear Gopro and Antenna mount. (all L mounts ship with Antenna tubes)
1x 20x20 Rear stack mount.


Dont forget to tag @lumaquad in any of your posts so we can share them on our socials!
