SpeedyBee F405 V3 BLS 50A

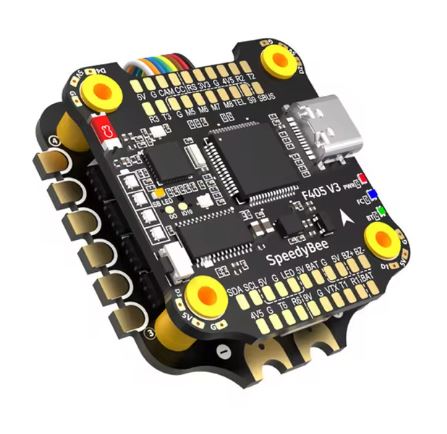

SpeedyBee F405 V3 BLS 50A 30×30 Stack

The SpeedyBee F405 V3 Flight Controller, with its advanced STM32F405 MCU and BMI270 gyro, is engineered for precision in the sky, further enhanced by its Type-C USB and integrated barometer. Designed for the modern FPV pilot, it features a seamless connection to DJI systems and customizable BetaFlight configurations via a user-friendly Bluetooth connection. A blackbox microSD slot, diverse power outputs, and multiple UARTs offer extensive data logging and peripheral support. Complementing this is the robust SpeedyBee BLS 50A 4-in-1 ESC, leveraging BLHeli_S technology to deliver consistent 50A power and surge protection, all controllable via the SpeedyBee app. This stack promises to be a reliable cornerstone for any custom drone build, prioritizing performance and ease of use.

WIRING DIAGRAM AND MANUAL DOWNLOAD HERE

Specifications

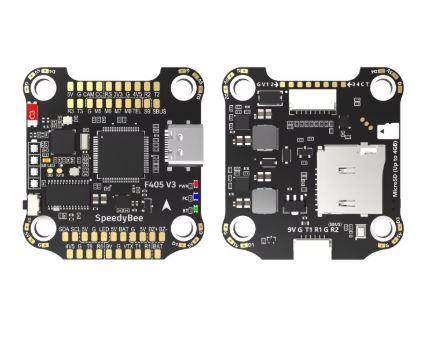

SpeedyBee F405 V3 30×30 Flight Controller

• MCU: STM32F405
• IMU (Gyro): BMI270
• USB Port Type: Type-C
• Barometer: Built-in
• OSD Chip: AT7456E chip
• BLE Bluetooth: Supported for Flight Controller configuration (MSP enabled, Baud rate 115200 on UART4)
• Wi-Fi: Not supported
• DJI Air Unit Connection: Two methods supported – 6-pin connector or direct soldering
• 6-pin DJI Air Unit Plug: Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1 without wire changes
• Blackbox: MicroSD Card Slot (Support for Standard or High Capacity cards up to 32GB, with FAT16 or FAT32 formatting)
• BetaFlight Camera Control: Yes, with CC pad on the front side
• Current Sensor Input: Supported (For SpeedyBee BLS 50A ESC, set scale = 386 and offset = 0)
• Power Input: 3S – 6S Lipo (G, BAT pins/pads from 8-pin connector or bottom side)
• 5V Output: 9 groups, total current load 2A
• 9V Output: 2 groups, total current load 2A
• 3.3V Output: Up to 500mA current load
• 4.5V Output: Up to 1A current load (supports receiver and GPS module)
• ESC Signal: M1 – M4 on the bottom, M5-M8 on the front side
• UART: 6 sets (UART1 to UART6, with dedicated UART4 for Bluetooth and UART5 for ESC telemetry)
• ESC Telemetry: UART R5 (UART5)
• I2C: Supported (SDA & SCL pads on front side)
• Betaflight LED Pad: Supported
• Buzzer: BZ+ and BZ- pad for 5V Buzzer
• BOOT Button: Supported for entering DFU mode or controlling LED strips
• RSSI Input: Supported, marked as RS on the front side
• Smart Port / F.Port: Not supported
• Supported Firmware: BetaFlight (Default), INAV (Note: DShot not supported with INAV)
• Firmware Target Name: SPEEDYBEEF405V3
• Mounting: 30.5 x 30.5mm (4mm hole diameter)
• Dimensions: 41.6(L) x 39.4(W) x 7.8(H) mm
• Weight: 9.6g

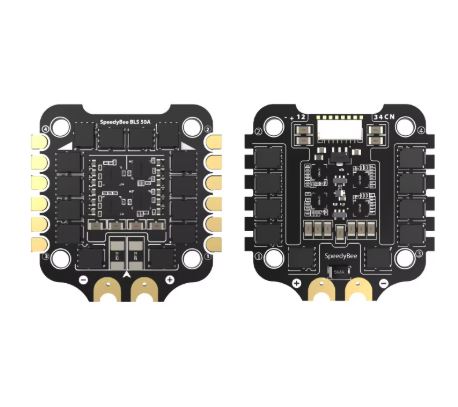

SpeedyBee BLS 50A 30×30 4-in-1 ESC

• Firmware: BLHeli_S JH50
• Wireless Configuration: Supported in SpeedyBee app
• PC Configurator: Download Link
• Continuous Current: 50A * 4
• Burst Current: 55A (for 5 seconds)
• TVS Protective Diode: Yes
• External Capacitor: 1000uF Low ESR Capacitor included
• ESC Protocol: DSHOT300/600
• Power Input: 3-6S LiPo
• Power Output: VBAT
• Current Sensor: Support (Scale=386 Offset=0)
• ESC Telemetry: Not supported
• Mounting: 30.5 x 30.5mm (4mm hole diameter)
• Dimensions: 45.6(L) x 44(W) x 6.1(H) mm
• Weight: 13.8g

Includes

• 1x SpeedyBee F405 V3 BLS 50A 30×30 Stack
