JHEMCU F4-Openlager High-speed Serial Port BlackBox Module Open Source Data Recorder

JHEMCU F4-Openlager High-speed Serial Port BlackBox Module Open Source Data Recorder

Regular price $13.73
Regular price Sale price $13.73
Sale Sold out

Many pilots have become accustomed to using various black box data analysis software to adjust PID and filter parameters. At present, many flight controllers do not have large-capacity black boxes, and the onboard is only 8-32MB, especially for many AIOs because of space constraints. , Can not place large-capacity black box, so the open source F4-openlager high-speed serial port black box appeared.

Open source address: https://github.com/d-ronin/openlager


Power supply: +5V

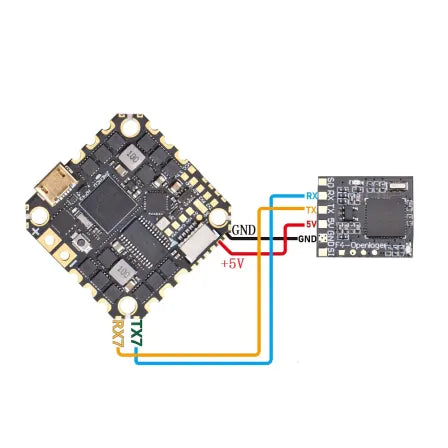

Interface: UART




Prepare your own Micro SD card. Connect the F4-openlager module and the flight controller correctly. Refer to the wiring diagram for the connection method. The BetaFlight ground station sets the port function of the external black box. Here, UART7 is used as a demonstration, and Blackbox logging is selected, and the baud rate is 2000000. Enter the black box interface and select Serial Port, 2KHZ, GYRO_SCALED, (Black logging rate/mode are selected according to their actual needs). After each setting is completed, click the Save and Restart button.



Indicator meaning:

Red light: power is normal

Blue light off: SD card detected, ready to work

Blue light flashes slowly: no SD card

Blue light flashes quickly: it will only appear after the remote control is unlocked, and the black box normally writes the data returned by the flight controller



Reading of black box files:

Export the LOG000 file of the SD card to the computer (the file serial number is automatically incremented by 1 each time the power is turned on), where the CFG file is the black box configuration file, this can be exported without. LOG000 is the log file generated after unlocking this time. It can be opened with Betaflight Blackbox Explorer software and the recorded flight data can be seen.
