DJI Air Unit O4 PRO (PRE ORDER)
DJI Air Unit O4 PRO (PRE ORDER)
Couldn't load pickup availability
Stock will ship before 25th Jan.
The DJI O4 Air Unit Pro is equipped with the state of the art DJI O4 video transmission system, achieving ultra-low latency for more responsive control.
As with all DJI Products we supply these units are genuine AU supplied stock, not Grey market imports like the majority of other FPV stores and come with local support, warranty and RMA process so you can shop with confidence.
Description

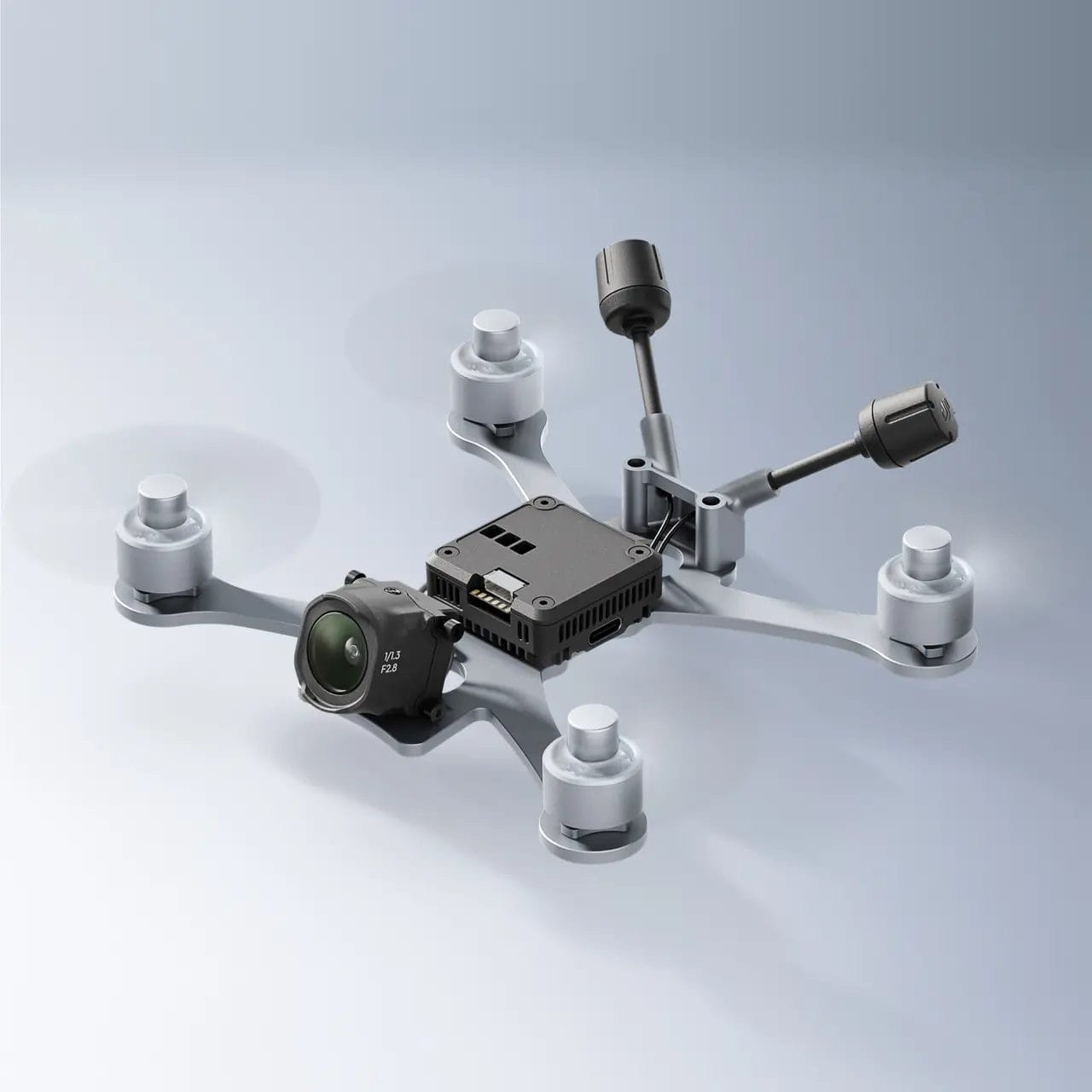

DJI O4 Air Unit Pro Digital FPV System
The DJI O4 Air Unit Pro has arrived!
Engineered for top-tier performance, the O4 Air Unit Pro features advanced DJI transmission technology housed in a sleek, compact form. Delivering exceptional image quality over extended distances, it offers ultra-low latency for an unmatched FPV experience. With its upgraded 1/1.3″ sensor, cutting-edge video processing, and an immersive 155° super-wide field of view, the O4 Air Unit Pro sets a new benchmark for FPV imaging. Designed for flexibility, it boasts enhanced compatibility with a variety of systems, making it the ultimate choice for professional pilots and enthusiasts alike. Take your FPV to the next level with the O4 Air Unit Pro!
Specifications
Air Unit
- Weight:
- Air Unit (camera module excluded): Approx. 15.6 g
- Air Unit (camera module included): Approx. 32 g
- Antenna: Approx. 2.1 g/pcs
- Dimensions:
- Transmission Module: 33.5×33.5×13 mm
- Camera Module: 25.55×20×23.30 mm
- Coaxial Cable: 130 mm
- 3-in-1 Cable: 100 mm
- Antenna: 110 mm
Video Transmission
- Operating Frequency:
- 5.170-5.250 GHz
- 5.725-5.850 GHz
- Transmitter Power (EIRP):
- 5.1 GHz: <23 dBm (CE)
- 5.8 GHz:
- <33 dBm (FCC)
- <14 dBm (CE)
- <30 dBm (SRRC)
- Lowest Latency:
- With DJI Goggles 3 (Racing Mode): As low as 15 ms
- With DJI Goggles N3 (Racing Mode): As low as 19 ms
- With DJI Goggles 2 or Goggles Integra: Less than 30 ms
- Max Video Transmission Range:
- DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
- Live View Quality: 1080P@30/48/50/60/100fps
- Communication Bandwidth: Max 60 MHz
- Antenna: 2 antennas, 2T2R
Camera
- Image Sensor: 1/1.3-inch CMOS
- Lens:
- FOV: 155°
- Equivalent Focal Length: 12 mm
- Aperture: f/2.8
- Focus: 0.6 m to ∞
- ISO Range: 100-25600 (Auto/Manual)
- Video Resolution:
- 4K (4:3): 3840×2880@30/48/50/60fps
- 4K (16:9): 3840×2160@30/48/50/60/100/120fps
- 1080p (16:9): 1920×1080@30/48/50/60/100/120fps
- Video Format: MP4
- Max Video Bitrate: 130 Mbps
- Color Mode: Normal, D-Log M
- EIS: RockSteady 3.0+ (supports Gyroflow)
Hardware
- Input Voltage: 7.4-26.4 V
- Operating Temperature: -10° to 40° C
- Storage:
- Built-in Storage: 4GB
- Supported SD Cards: microSD (up to 512 GB)
Compatibility
- Supported Flight Controller System: Betaflight 4.3.0+
- Supported DJI Goggles and Remote Controllers:
- DJI Goggles 3 + DJI FPV Remote Controller 3
- DJI Goggles N3 + DJI FPV Remote Controller 3
- DJI Goggles 2/Goggles Integra + DJI FPV Remote Controller 2

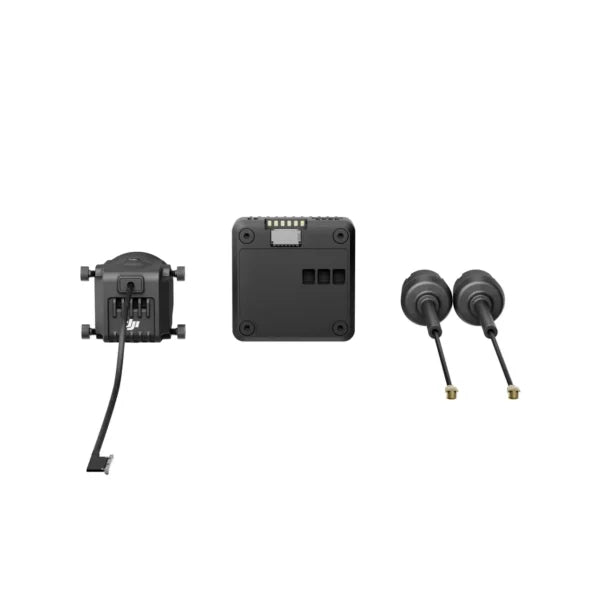

Includes
- 1x DJI O4 Air Unit Pro Camera Module
- 1x DJI O4 Air Unit Pro Transmission Module
- 2x DJI O4 Air Unit Pro Antenna
- 1x DJI O4 Air Unit Pro 3-in-1 Cable
